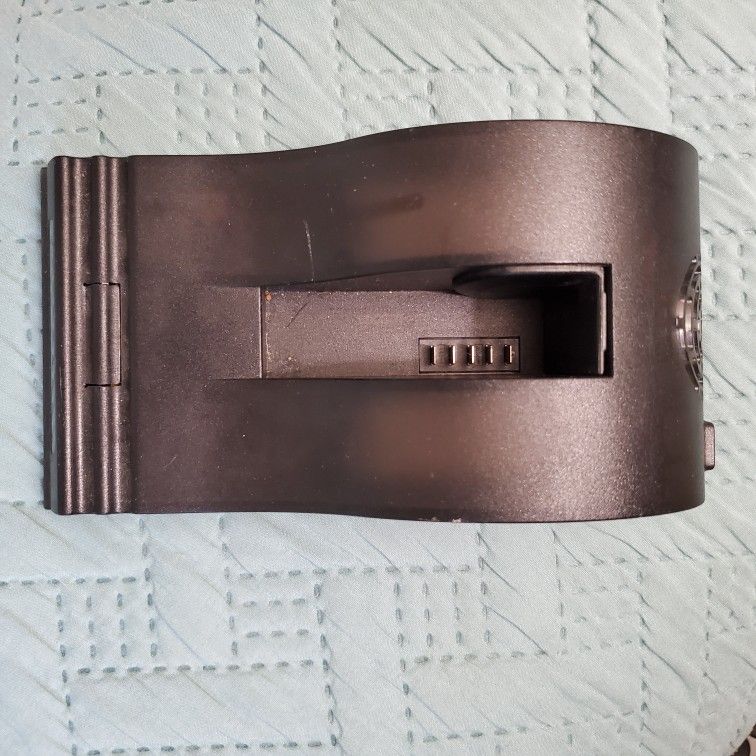

CH5000 Single bay standard smart charger / calibrator Ig

The CH5000 is a single bay desktop charger / calibrator for use with the full range* of ‘N’ series smart batteries from Inspired Energy. As a smart charger, the CH5000 communicates with any compatible battery to determine the correct charging voltage (mV) and charging current (mA). This advanced charging method delivers the safest and most efficient charging technique as the battery remains totally in control of the charging process, allowing smart batteries of different voltage, capacity and chemistry to be charged with a single charger. Compatibility The CH5000 will charge or calibrate any Inspired Energy smart battery which part number starts with a letter ‘N’ – this includes the following models: NB2037, NC2040, NC2560, ND2034, ND2037, ND2053, ND2054, ND2057, ND3054, NF2030, NF2040, NF2047, NH2034, NH2054, NH2057, NI1030, NI2020, NI2040, NI3020, NI3040, NJ1020, NL2020, NL2024, NL2044, NL2050 and NL2054. *The CH5000 will NOT charge the NB4037, NC4040, ND4054 or NE4068 batteries. For these, please select the CH1000 charger. Calibration Function The fuel gauge contained within Inspired Energy smart batteries provides a highly accurate estimation of battery capacity, but certain use cases can result in accuracy drift. To correct this, the CH5000 includes a calibration function which charges and discharges any compatible battery, allowing it to relearn its full charge capacity and remaining state of charge. The calibration process is initiated by simply pressing a button on the front of the CH5000.
