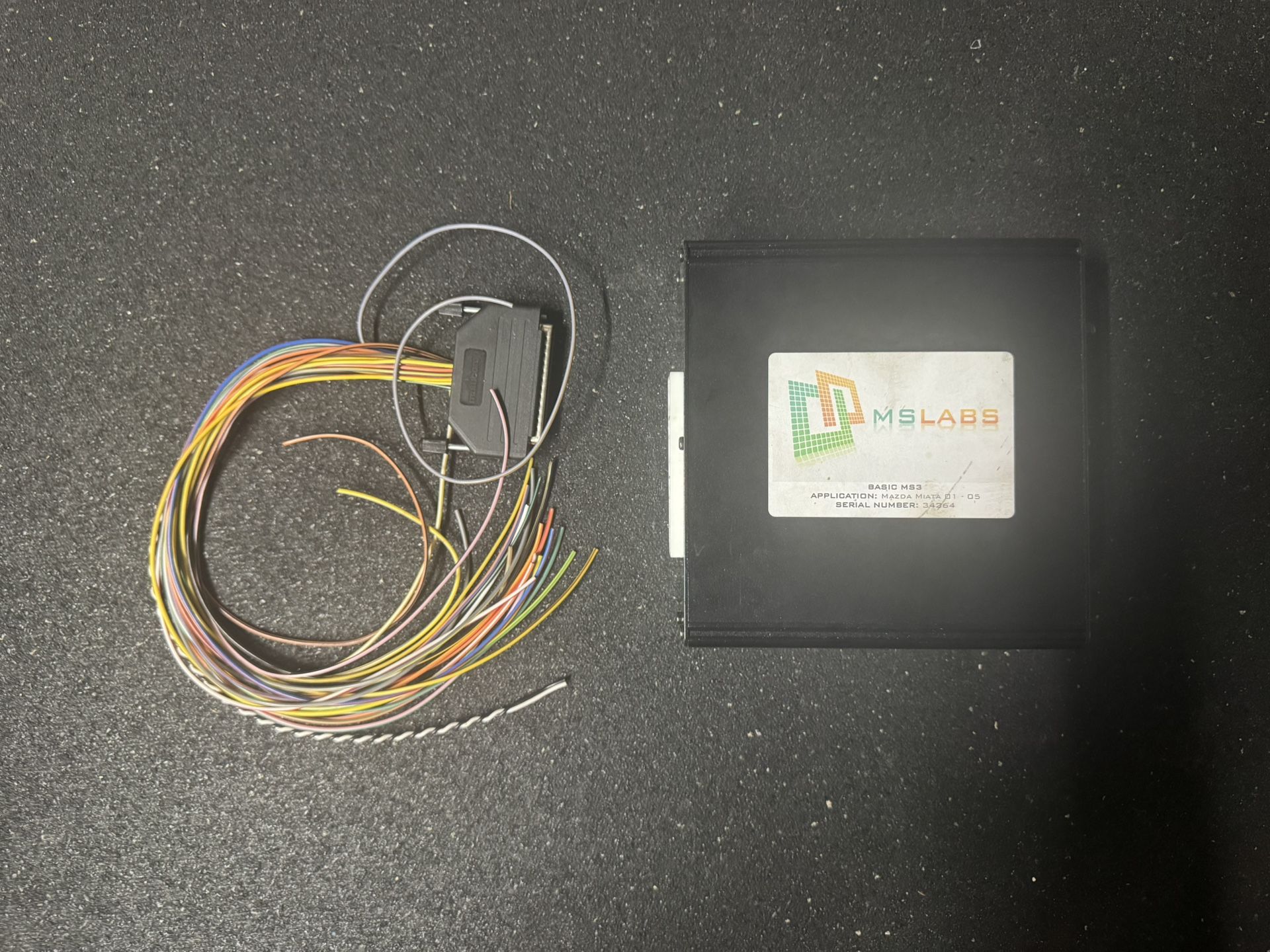

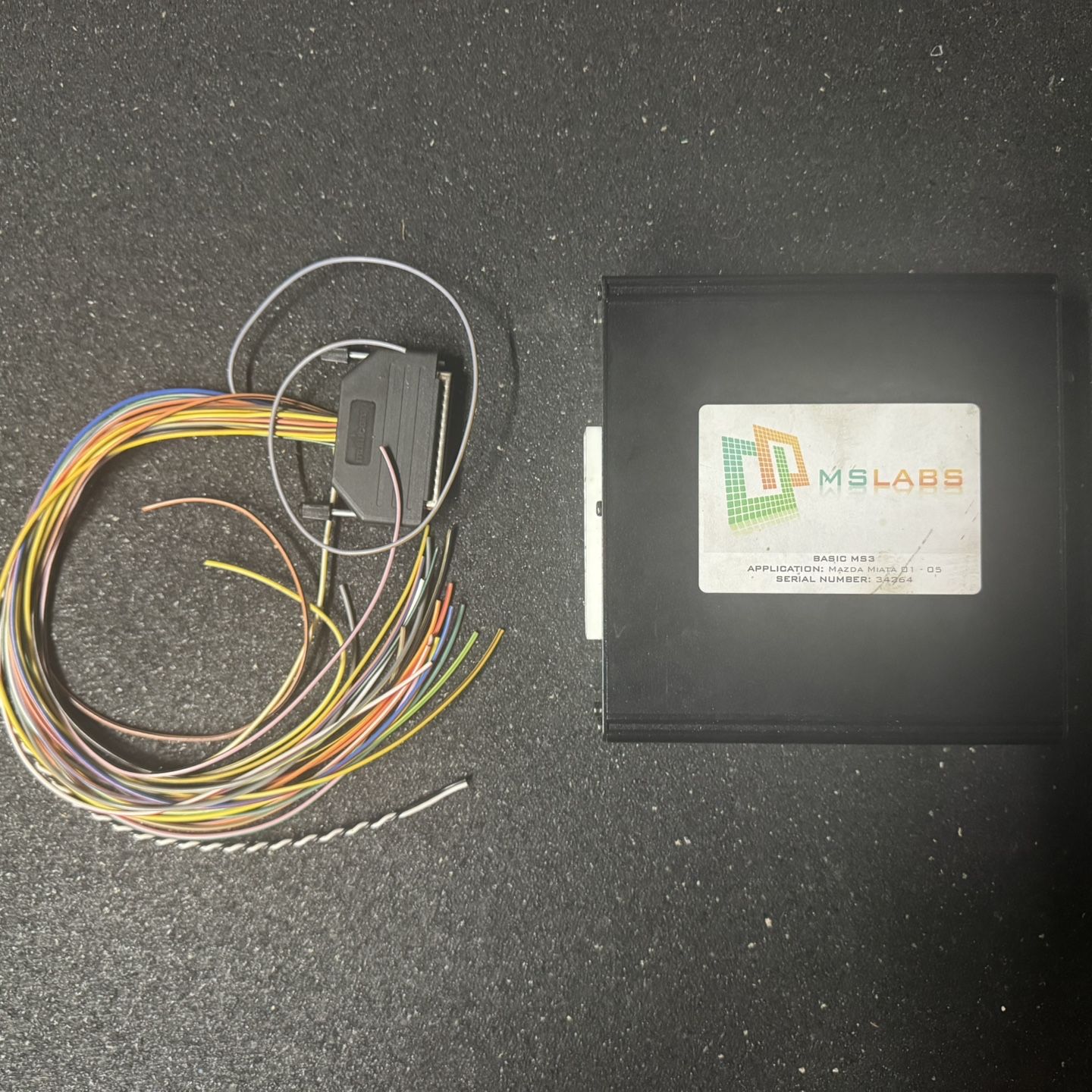

BOFI (megasquirt equivalent) MS Labs MS3 Basic Plug and Play ECU For Mazda MX-5 NA NB

BOFI (megasquirt equivalent) MS Labs MS3 Basic Plug and Play ECU For Mazda MX-5 NA NB New - just taken out of package and not used Product retails on BOFI for $1600 but is sold out currently. See product specs from product website below: Overview This fully standalone ECU supports all the basic functionality required for a turbocharged or supercharged MX5 build. The stock ECU case may require some modification to fit the MS3 Mini inside depending on the year. This ECU will work with your JDM Import Eunos, your Miata or your MX5, plug and play with just slight modifications to the case for the Map line and USB cable installation, like most PNP solutions. Expandable outputs via 37 pin connector * Direct fit, no cutting or splicing required, the ECU connects directly to the stock ECU connectors * Logging Memory Expandable up to 32GB * 16 inputs * 23 outputs * Onboard realtime barometric sensor * CAN Bus enabled * Sequential injection with individual cylinder trimming * Sequential ignition * Excellent knock control with DSP, software adjustable.* * Electronic boost control with 2 separate boost levels, selectable with an external switch, and/or boost by gear + Digital alternator control + Battery light warns you of overcharging/undercharging + CEL control for sensor checks and more + A/C idle-up, software adjustable + VICS/VTCS control, software adjustable + Sequential cooling fan control, software adjustable + Two separate fuel/timing maps, selectable with an external switch (ie regular pump gas or race gas or E85) + Full flex fuel support, blend tables in real time. + Speed input from OEM sensor, current gear calculation + 2nd speed sensor input for traction control + Launch control + Flatshift + 5 free programmable outputs + 4 free analog inputs (5 if you don’t need realtime baro correction) + 4 free digital inputs + USB and serial port for communication Product Features All of our MS3 Basic series ECUs include: • Use of all stock sensors (just add a wideband) You don’t need to replace the crank/cam sensors, or the coolant/air temp or throttle position.* for a 1.6 an e36 bw VTPS conversion is recommended. • Sequential injection The Mini MS3 has 4 injector drivers; this means it can drive each injector separately.* • Wasted spark ignition (batch fire) Use the stock coilpacks or use coil-on-plug (ie Toyota coils) and coil-near-plug (LS coils etc) wires in pairs • Advanced knock control with DSP and knock windowing. Add a knock sensor and instantly detect knock and automatically retard the timing to protect your engine. Optionally, assign an output to activate a LED to warn you when this happens! • Stock idle control (stock 2-wire idle valve). Open loop and closed loop idle control, with fan, A/C and voltage compensation. Optionally, enable idle advance to enable fine control of the idle RPM by varying the ignition timing. • Tachometer output – drive the stock gauge cluster if you remove the stock coils or send an RPM signal to an external shiftlight. • Dual cooling fan output – two output stages for cooling fans, each separately configurable. The first output has a configurable idle-up parameter, so when it activates it won’t drag your idle down! • Air Conditioning control Fully control your A/C, with automatic A/C cutoff when you rev the car. • VVT Control Control the variable valve timing, as found on the later 01 1.8L engines. Assign a target angle on the RPM/Load 3D table, and the closed loop control will automatically track the target angle to 0.1 of a degree. • Flex Fuel sensor input Automatically adjust the fueling, timing and boost by adding a flex fuel sensor. The same sensor also sends fuel temperature data to the ECU for further analysis and table control/blending. • Electronic boost control Use any PWM valve for boost contro, with 2 open loop or closed loop boost tables, boost by gear, boost by VSS, blend tables based on sensors, trim switches, etc. • Launch control Extremely configurable launch control. Activate by RPM, TPS, vehicle speed, or any other parameter. Use fuel cut for catalyst-equipped vehicles or spark cut on track/turbo cars to also spool up the turbo. Fine control the retard, the rate of cylinder cutting, adjust the RPM threshold through a calibration switch on the fly, setup a different limit for burnouts on the drag strip. Show those subaru’s who’s boss at your local car park. • Flat foot shifting Use the stock clutch switch to enable flat foor shifting aka flatshift – aka, light up the nights sky with fire! • Pit lane limiter For tracks requiring a strict pit speed limit, setup a button to restrict the vehicle speed as required. • Antilag Use antilag to keep your turbo spooled up during gear changes. Use the stock idle valve to keep the air in or add an on/off or PWM solenoid. • Adjustable rev limiter with fuel or spark cut Adjust the rev limiter either with static RPM limits or by coolant temp (protect your e

Condition

New

Brand

BOFI (Megasquirt equivalent)
