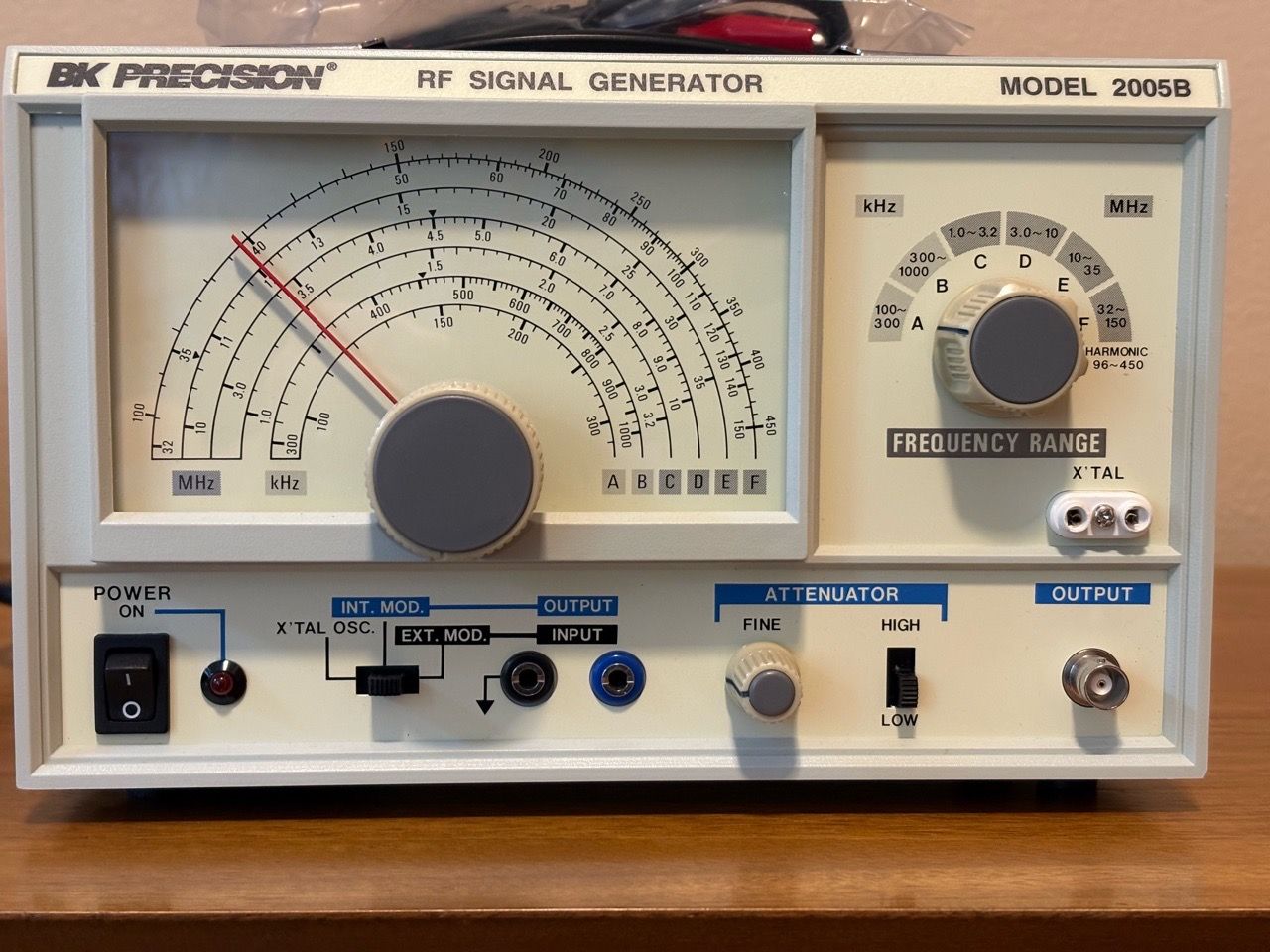

BL Precision Signal Generator model 2005B

Unused, BNC output cable still in sealed bag. Details: 100 kHz to 150 MHz on six bands * Output to 450 MHz on harmonics * AM modulation, internal or external * Frequency monitor output for external frequency counter * Step and variable attenuation RF Output Level Maximum Output 100 kHz to 150 MHz (up to 450 MHz on third harmonics) * 100 kHz-300 kHz * 300 kHz-1 MHz * I MHz-3.2 MHz * 3 MHz-10 MHz * 10 MHz-35 MHz * 32 MHz-150MHz (96-450 MHz on harmonics) + 3% Continuously variable. Step attenuator provides approximately 20 dB of attenuation Approximately 100 mV rms to 35 MHz. Continuously variable in hi or lo step, at least 20 dB range of adjustment FREQUENCY MONITOR OUTPUT Frequency 100 kHz to 150 MHz 50 mV rms min. fixed, unmodulated signal AMPLITUDE MODULATION Internal Frequency 1 kHz; level continuously variable. Modulation signal available at front panel jack; fixed | V rms (min) into approx. 10 kg External Frequency 50 Hz to 20 kHz SensitivityApproximately 100 mV rms POWER SOURCE 120/220/240V ‡ 10%, 50/60 Hz Dimensions (HxWxD) 5.91×9.84 x 5.12"(150 x 250 x 130 mm) Included: BNC to Insulated Clip Output Cable, Detachable Power Cord. Box and manual are missing. Ham radio amateur radio

Condition

Open Box (never used)
