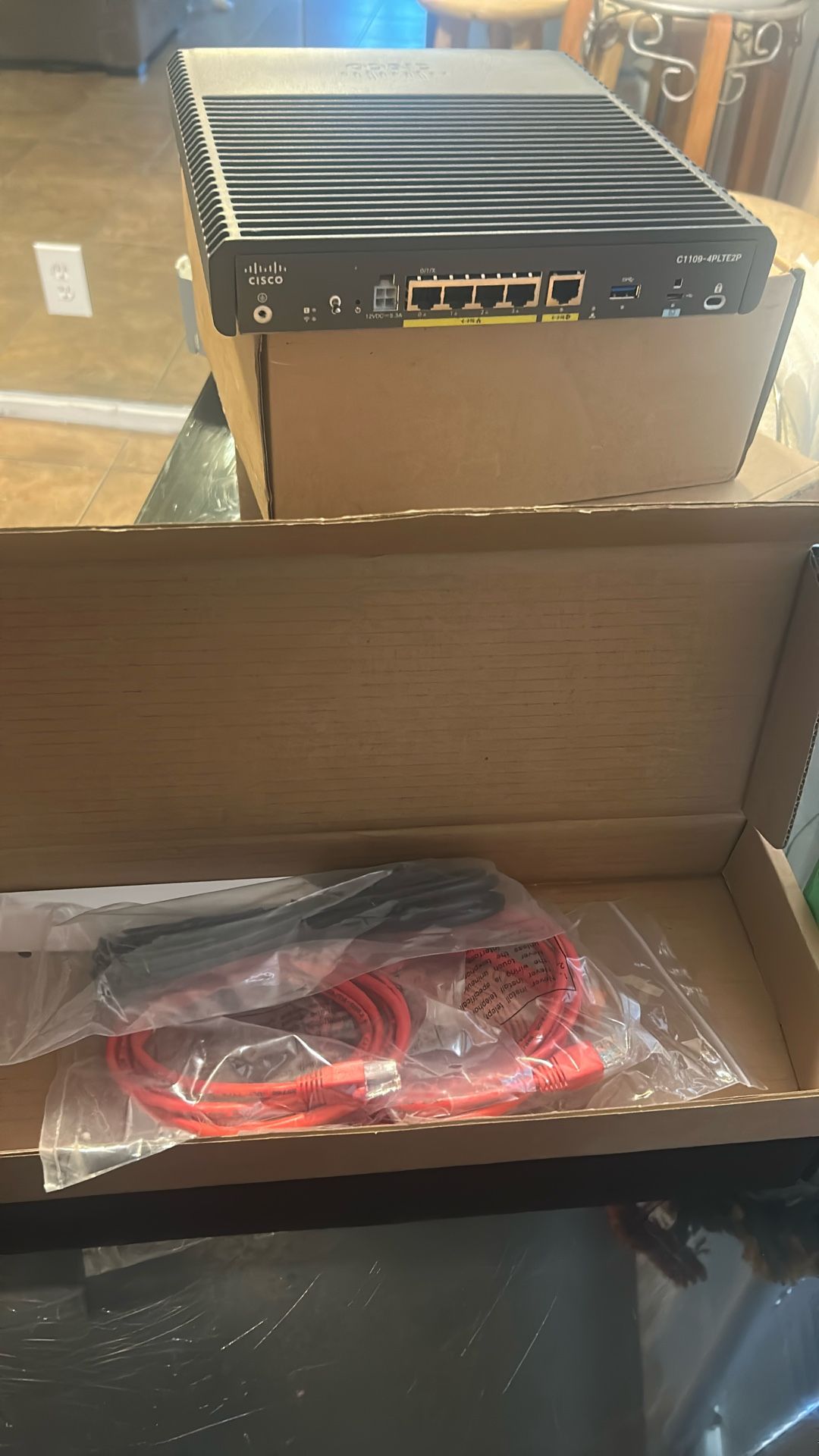

Cisco C1109-4PLTE2P Integrated Services Router

Brand

Cisco

Product Overview The Cisco C1109-4PLTE2P Integrated Services Router (ISR) is a versatile desktop network router designed for robust connectivity in a variety of environments. With its advanced features and flexible expansion capabilities, it delivers high-performance networking solutions. Main Specifications Below are the key details of the Cisco C1109-4PLTE2P, providing insights into its configuration and capabilities: General Information Manufacturer: Cisco Model Number / SKU: C1109-4PLTE2P Product Category: Network Router Form Factor: Desktop Router Ports: 4 Ports Core Features Device Type: Router Enclosure: Compact Desktop Design Cellular Protocol: LTE WAN Ports: 1 Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet Network/Transport Protocols: IPsec, IPv6 Routing Protocols Supported: OSPF, RIP-1, RIP-2, BGP, EIGRP, PIM-SM, Policy-based Routing (PBR), and MLD Expansion & Connectivity Options Interface Details WAN: 1 x 1000Base-T/1000Base-X - RJ-45 LAN: 3 x 1000Base-T - RJ-45 USB Connectivity: 1 x USB 3.0 port Antenna Specifications External Antenna: 4 antennas for enhanced coverage and signal strength Power Requirements Power Source: External Power Adapter Voltage: AC 100-240V (50/60 Hz) Cisco C1109-4PLTE2P Integrated Services Router 1109 4 Ports Router Desktop The Cisco C1109-4PLTE2P Integrated Services Router (ISR) is a compact, high-performance router designed to provide reliable and secure connectivity for small to medium-sized businesses or branch offices. As part of the Cisco 1100 Series, this 4-port desktop router offers cutting-edge features that are tailored to meet the growing demands of modern enterprise networks. Overview of Cisco C1109-4PLTE2P Router The Cisco C1109-4PLTE2P ISR combines secure routing, wireless support, and performance in a single device. Ideal for edge deployments and remote office connectivity, this router ensures fast, reliable data transmission, and robust security for a range of network configurations. With integrated LTE support, it provides versatile connectivity options to suit a variety of networking needs. Key Features of the Cisco C1109-4PLTE2P Router 4 Ethernet Ports: The router features four Gigabit Ethernet ports, allowing seamless local area network (LAN) connectivity and enabling multiple devices to connect to the network simultaneously. Integrated LTE Connectivity: With built-in LTE functionality, the Cisco C1109-4PLTE2P can support both wired and wireless broadband connections, making it ideal for environments where traditional broadband access is not available. Compact Desktop Form Factor: The compact design of the router makes it suitable for desktop deployment, perfect for small business offices or branch locations that require minimal space without compromising on network performance. Advanced Security Features: The router includes a comprehensive suite of security features, including firewall protection, VPN support, intrusion prevention, and content filtering, ensuring that your network is protected against unauthorized access and cyber threats. Cloud-Managed Services: Cisco’s cloud-managed services allow for simplified remote management, real-time monitoring, and configuration updates without the need for hands-on maintenance. Future-Ready Performance: The router is designed to handle high traffic volumes, supporting bandwidth-intensive applications and cloud-based services as your business grows. Use Cases for Cisco C1109-4PLTE2P Integrated Services Router The Cisco C1109-4PLTE2P ISR is versatile and can be deployed in various use cases, including: Branch Office Networking For businesses with remote or branch office locations, the Cisco C1109-4PLTE2P provides reliable connectivity with robust security. The built-in LTE option allows businesses to establish network connections even in areas where traditional internet services may not be readily available. This capability ensures that remote teams can stay connected and productive regardless of location. Small Business Networking Small businesses benefit from the C1109-4PLTE2P’s combination of secure routing, wireless support, and compact design. The router is an affordable, all-in-one solution that meets the needs of growing businesses by providing reliable internet access, internal network connectivity, and strong security measures. Enterprise Edge Networking For larger organizations with branch offices, the Cisco C1109-4PLTE2P provides enterprise-grade features in a smaller form factor. It integrates easily with larger networks while offering security and LTE backup in case of WAN failures, ensuring continuity of service. Advantages of Cisco C1109-4PLTE2P for Your Network Scalability The Cisco C1109-4PLTE2P offers scalability to meet the growing needs of your business. Whether you are expanding your office or increasing the number of devices on your network, this router can handle increased traffic loads and provide uninterrupted service to your team. The router also supports a
