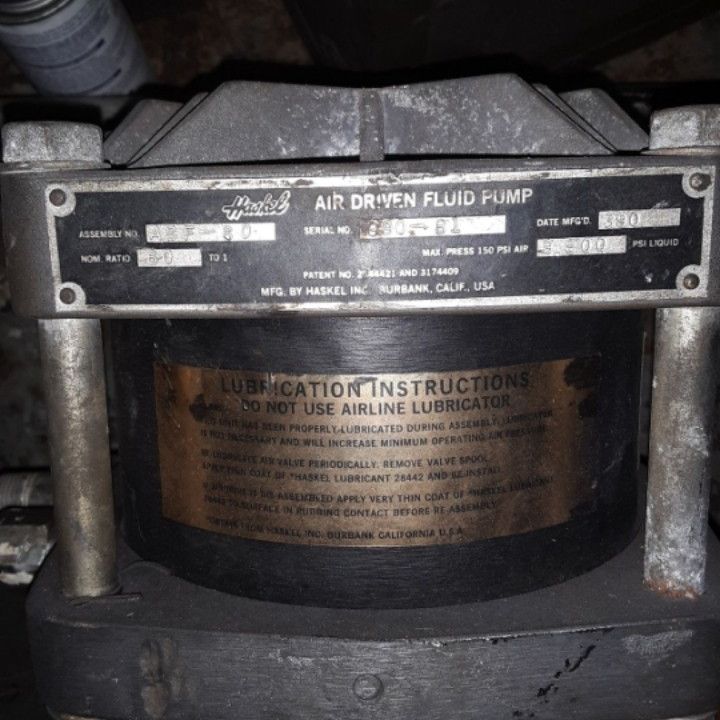

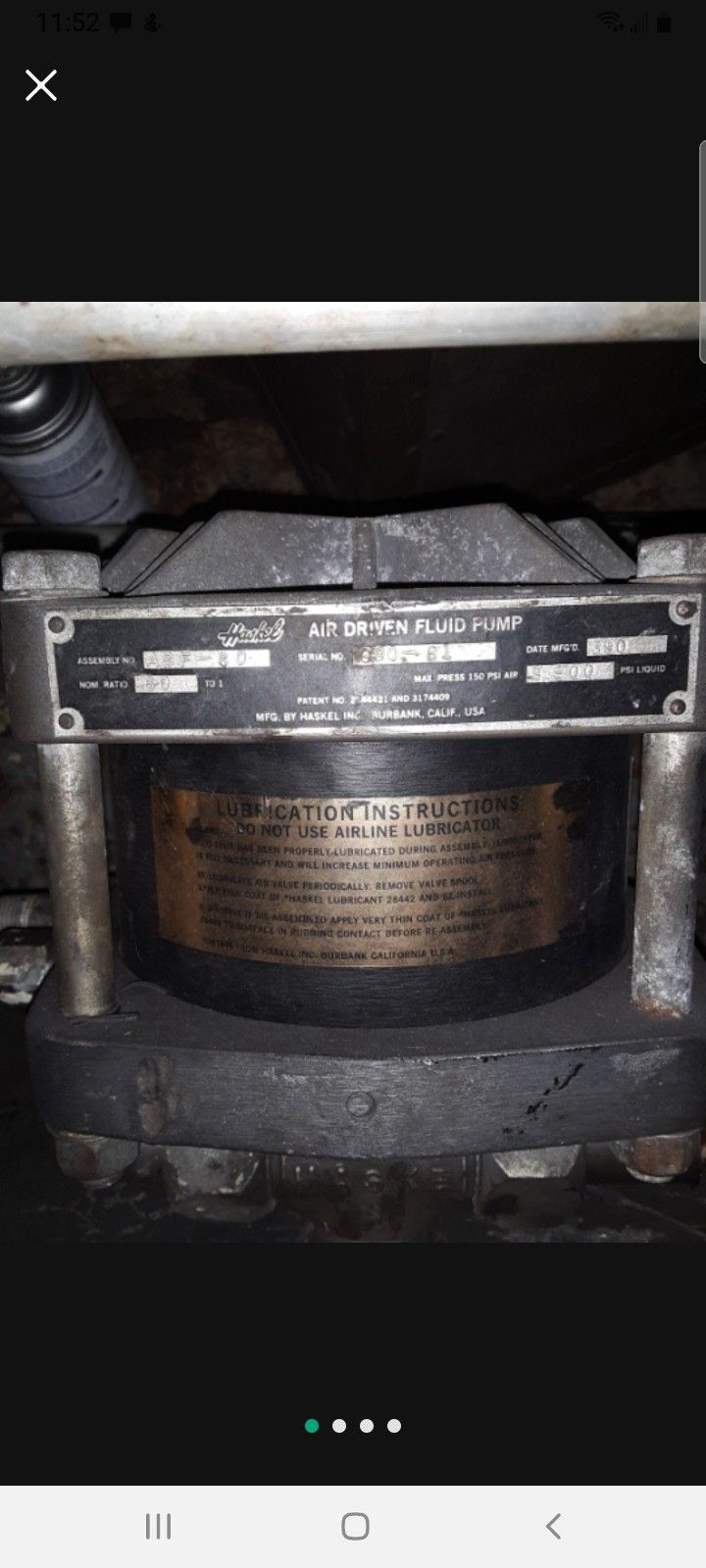

Haskell Air Liquid Pump UpTo 9.999 Psi

1.5 HP (1.12 KW) Series Air Driven Liquid Pump Stainless steel hydraulic piston and body 2" stroke 1.5 + 2 hp pump series UHMWPE (Ultra-high Molecular Weight Polyethylene Dynamic Seal) Model Number: ASF-60 Nominal Ratio:  60 Technical Specifications: Horsepower1.5Actual Ratio69Displacement (cu)0.67Displacement (ml)11Service Code 1YESService Code 2YESService Code 6YESMax Rated Continuous Output Pressure (psi)9800Max Rated Continuous Output Pressure (bar)676Max Rated Intermittent Output Pressure (psi)9800Max Rated Intermittent Output Pressure (bar)676   Optional Modifications Number | Description 16821 Low air pressure control feature for operating at air pressure as low as 3 or 4 psi 16831 Low temperature modification for special sealing in air drive for operating temps From as low as -20º F and up to normal 120º F 16834 Exhaust adapter with back pressure balance piston 17860 Electrical stroke counter - Installed 25721 Mechanical Stroke counter - Installed ( 6 digit) 27964 Interconnecting inlet - Outlet tubing - 1/2” female for 4:1 ratio series pumps 28000 Threaded vent (or purge) ports on standard distance piece except 1.5:1 ratio 28003 Test port - Provides access port in pumps body between inlet and outlet check valves for 1:5 and 2 HP pumps, - 10 ratio higher, single acting 28881 Start/Stop pilot modification - 1/8 NPT 29376 Three way cycling spool - for 1.5 and 2 HP single acting pumps 29702 Single stroke modification 29806 Double distance piece- for 1.5 and 2 HP pumps only, except 1.5:1 ratio 51050 Extreme service cycling modification 51056 Exhaust/pilot vent combination 51331 EPR (Ethylene Propylene) Static seals in wetted section 51345 Sour gas drive provision to NACE specs. 1.5 thru 2.2 HP distance piece (specify single or double air head) 52788 Viton seals air drive 53925 Severe arctic low temp. service -25,-35,-60,-100,-150,-151,-225,-450 ratios 54885 Rotated body pump 90º from standard 54935 SS trim for 5/3 air drive 55305 Tube ports (5/8 SAE) inlet and outlet - for 1.5 thru 2 HP pumps 55465 Ceramic Plunger -60 Ratio 55516 Polyurethane “W” seal in “F” series pumps-except high output models 55630 Stainless steel (SS-316) distance piece - for 1.5 thru 2 HP pumps 59353 Noise reduction modification 59888 Cycle Timer 82460 HNBR Seals in Air Drive Section 82500 ATEX Modification (Not available on AW or DSXHW pumps) 82958 9/16 High pressure outlet converts medium ratio 10-122 outlet 1/2 port to high pressure port 86337 Ext. life air drive B Bottom inlet (medium and high ratio) BR Bottom Inlet (low ratio) C-1 or 2 Air Controls CO Air controls with recycle button. ½” NPT. CP Air Controls with precision regulator CPO Air controls with precision regulator and recycle button. ½” NPT. W Additional upper foot bracket.
