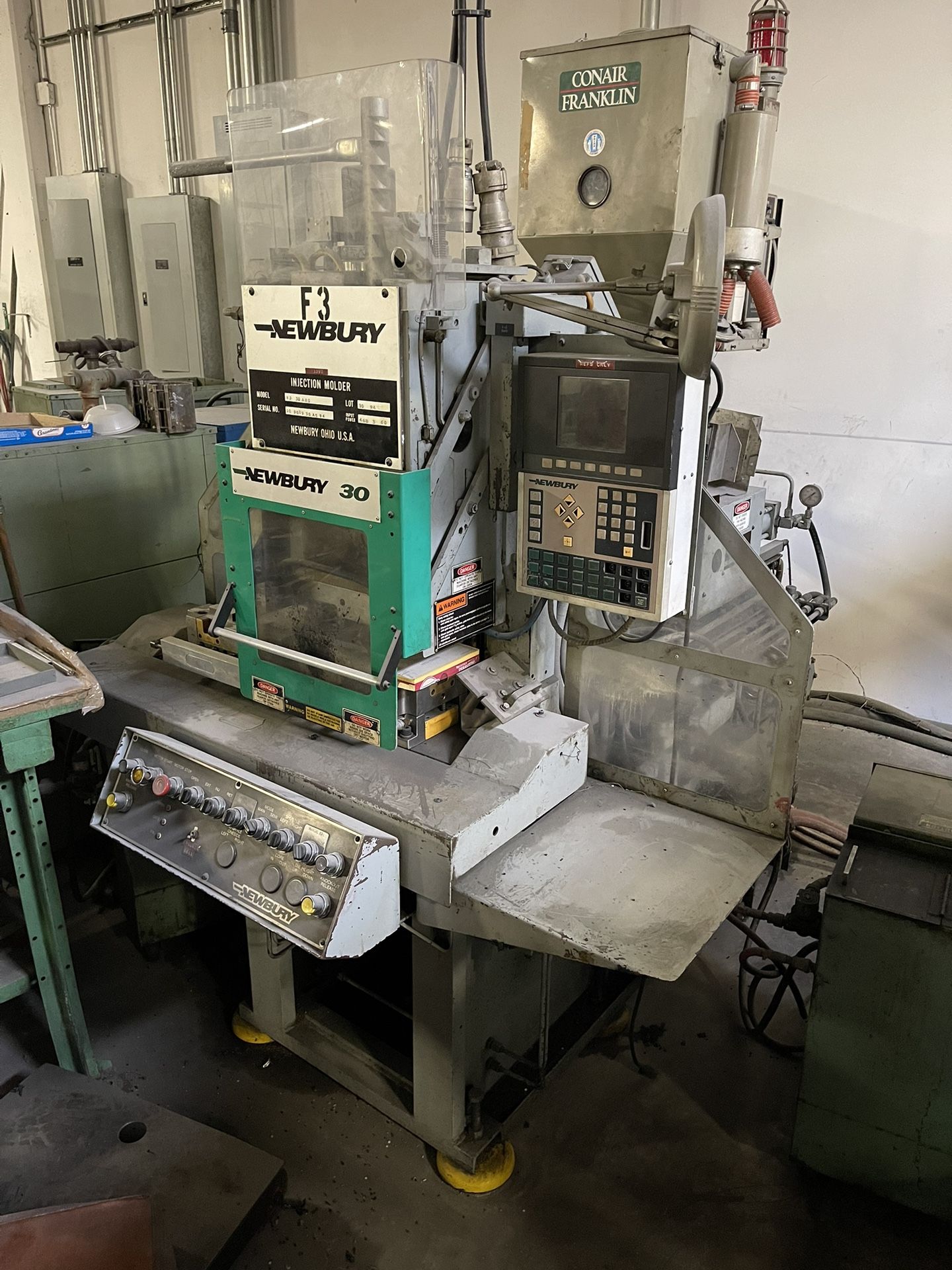

30 Ton Newbury V3-30BRS Vertical Shuttle Injection Molding Machine

Type

V3-30BRS

Brand

Newbury

Used 30 Ton Newbury V3-30BRS Vertical Shuttle Injection Molding Machine 460V / 3 Phase / 60Hz Comes with all manuals and prints. Controller has lost its memory, needs to be programmed. Everything else is in working & great condition Purchased brand new in 1994 Specifications- Injection Unit Shot capacity : 2.65 OZ Plasticizing Capacity/per hr : 72.77 lbs Screw Diameter : 1.25 in Screw L/D Ratio : 20:1 Screw Recovery Rate/per sec : 0.32 oz Screw Speed/Variable RPM : 10-231 Injection Stroke : 4 in Injection Volume : 4.91 cu in Maximum Injection Pressure on Material : 27,040 PSI Rate of Injection/per sec : 3.12 cu in Total Heat Band Output : 6800 watts Clamping Unit- Mold Clamping Force : 30 tons Maximum Clamping Stroke : 6 in Platen Size/H × V : 8 x 10 in Maximum Mold Space/H x V : 8 x 10in Daylight-Closed/min. - max : 6.0-8.75 in Daylight-Open/max : 14.75 in Center Line of Injection : 2 3/8 - 5 1/8 in Shuttle Table (Standard) Shuttle Center Distance : 14 in Shuttle Thickness : 1.500 in General Specs- Hopper Capacity : 45 lbs Motor at 1200 RPM : 7.5 hp Oil Tank Capacity : 42 gal Pump Delivery : 12gpm Est. Weight : 8,900 Length : shuttle 9 ft - rotary 132.5 in Width : shuttle 5 ft - rotary 46 in Height : shuttle 6.75 ft - rotary 81 in Please message for more information, questions or photos Local pick is is preferred Located in South Gate CA 90280
