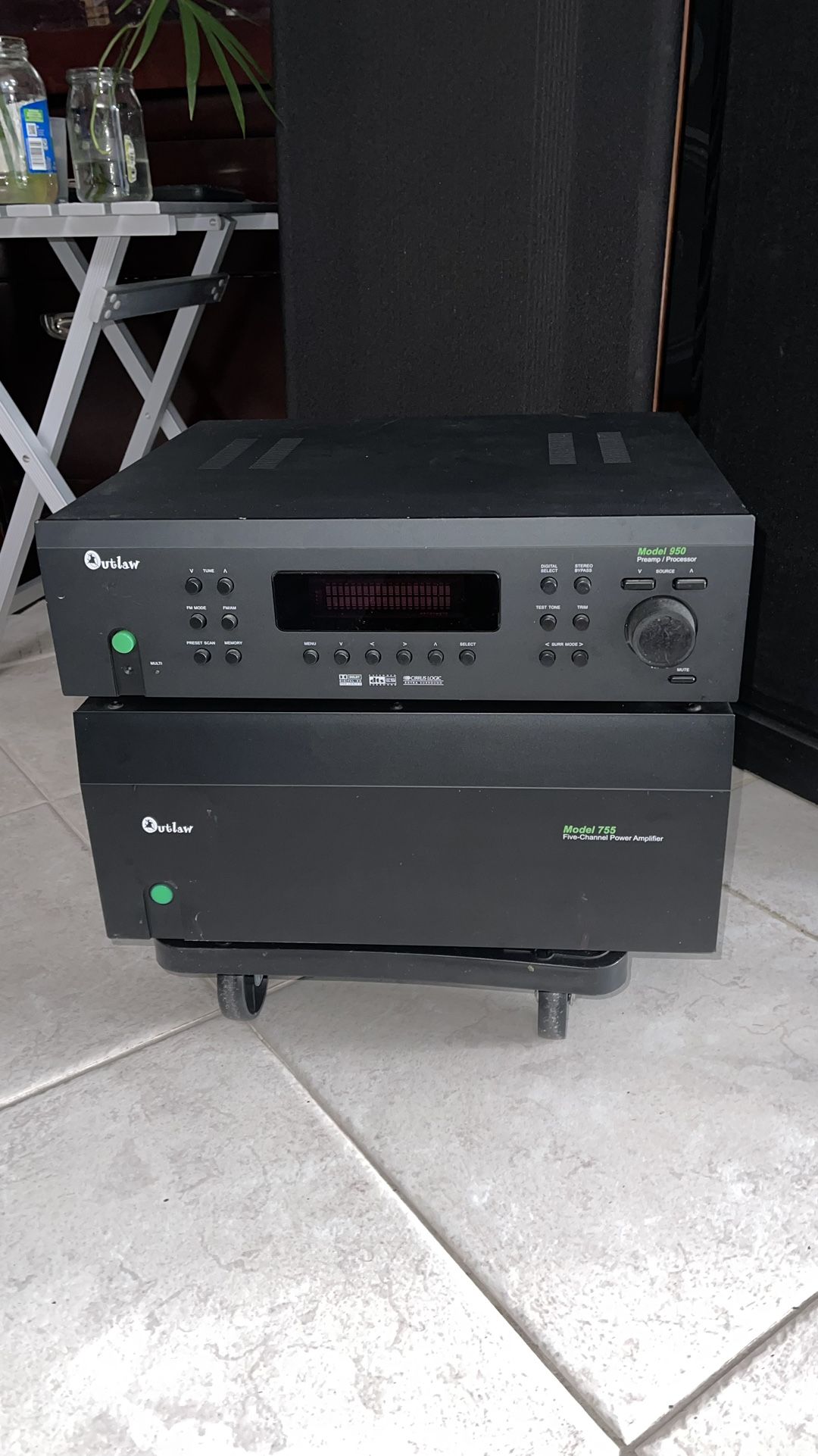

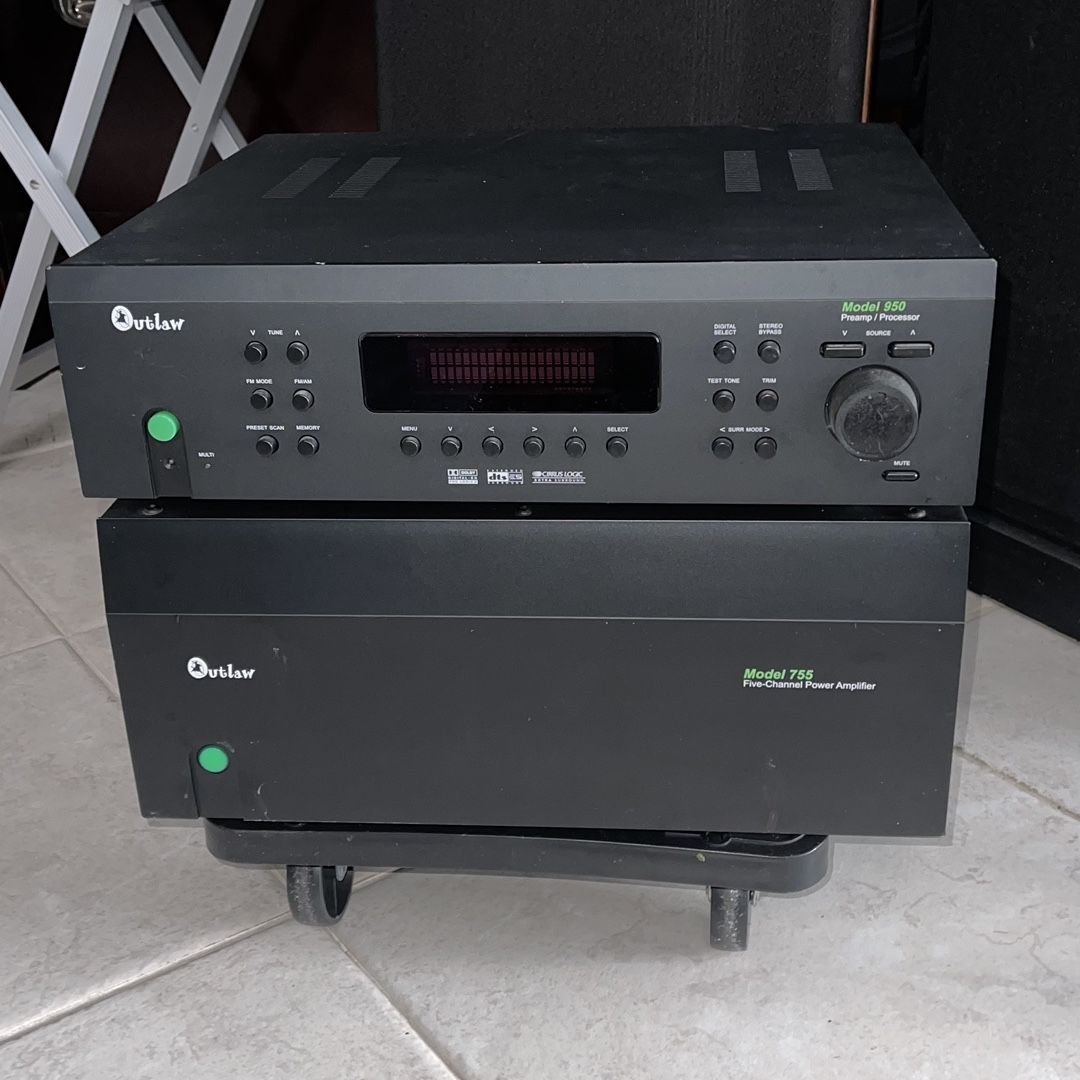

Outlaw Model 755 -5 Channel Amplifier And Preamplifier Model 950

If it’s listed, it’s available!!! Must be gone today!!! The Model 755 is high-power five channel amplifier, perfect for most theater applications. A worthy successor to the award winning Model 750, it features dual-torroid transformers for space saving design. Specifications Power output: 200 watts RMS x 5 (all channels driven simultaneously into 8 ohms from 20 Hz to 20 kHz with less than 0.05% total harmonic distortion). 300 watts RMS x 5 @ 4 ohms Signal to Noise: 119dB "A" weighted Power Bandwidth: 5 Hz - over 100 kHz (+0/-3 dB) Damping factor: 850 (10 Hz - 400 Hz) Input sensitivity/Impedance: 1.43 volts for full output/28 k ohms. Crosstalk: Greater than -90 dB from 20 Hz to 20 KHz Gain: Voltage gain of 28 dB Slew rate: 50 Volts/microsecond Remote Trigger voltage: 3 - 32 volts DC Power requirements: 115 V 50-60 Hz Power consumption: 1,800 watts (maximum) Dimensions (W x H x D): 17.2 x 7.75 with feet x 18 (inches) Weight: 78 (lbs) Outlaw Audio Model 950 Preamp/Processor Specifications Audio Section Analog • Frequency response: 10 Hz - 90 kHz: +0, -3 dB (Bypass Mode) • Signal to Noise Ratio: 102 dB (Bypass Mode) • Distortion: 0.0038% (20 Hz ~ 20 kHz) (Bypass Mode) • Input sensitivity / input impedance: 200 mV/ 47kohms • Rated output: 1V(0dB gain in Bypass Mode) Digital • Signal to Noise Ratio: 102 dB • Total Harmonic Distortion: <0.005% (1 kHz, at 0 dB) • Dynamic Range: 100 dB • D/A Output: Rated output 2 V (At 0 dB playback) • Digital Input: S/P-DIF Format • DSP Processor: Cirrus® CS 49326 • ADC: Cirrus CS 5360 • DAC: Cirrus CS 4396 Video Section Composite • Video Format: NTSC • Input/Output Level: 1 volt P-P • Input/Output Impedance: 75W • Frequency Response: 5 Hz - 10 MHz -- +0, -3 dB S-Video • Signal Format: NTSC Y/C • Luminance (Y) Input/Output Level: 1 volt P-P • Chrominance © Input/Output Level: 0.3 volt P-P • Input/Output Impedance: 75W • Frequency Response: 5 Hz - 10 MHz -- +0, -3 dB Component Video • Signal Format: NTSC Y/Pr/Pb • Analog Components • Luminance (Y) Input/Output Level: 1 volt P-P • Pr Input/Output Level: 0.7 volt P-P • Pb Input/Output Level: 0.7 volt P-P • Input/Output Impedance: 75W • Frequency Response: DC - 45 MHz -- +0, -3 dB Tuner Section FM • FM Tuning Range: 87.5 MHz - 108 MHz AM • Usable Sensitivity: Stereo: 1.8µV • 50 dB Quieting Sensitivity: MONO 2.5µV STEREO 23 µV • Signal to Noise Ratio (IHF-A): MONO 79 dB STEREO: 74dB • Total Harmonic Distortion: MONO 0.2% STEREO: 50 dB • AM Tuning Range: 520 kHz - 1710 kHz • Usable Sensitivity: 25µV General • Power supply: AC 120 V, 60 Hz • Power consumption: 45W • Dimensions (including feet and connectors): 17.12 (W) x 4.6 (H) x 14.76 (D) inches, 435 (W) x 117 (H) x 375 (D) mm • Weight: 17.6 Lbs/8 kg • Trigger Outputs (x2): 12 VDC, 100 mA maximum

Condition

Other (see description)
