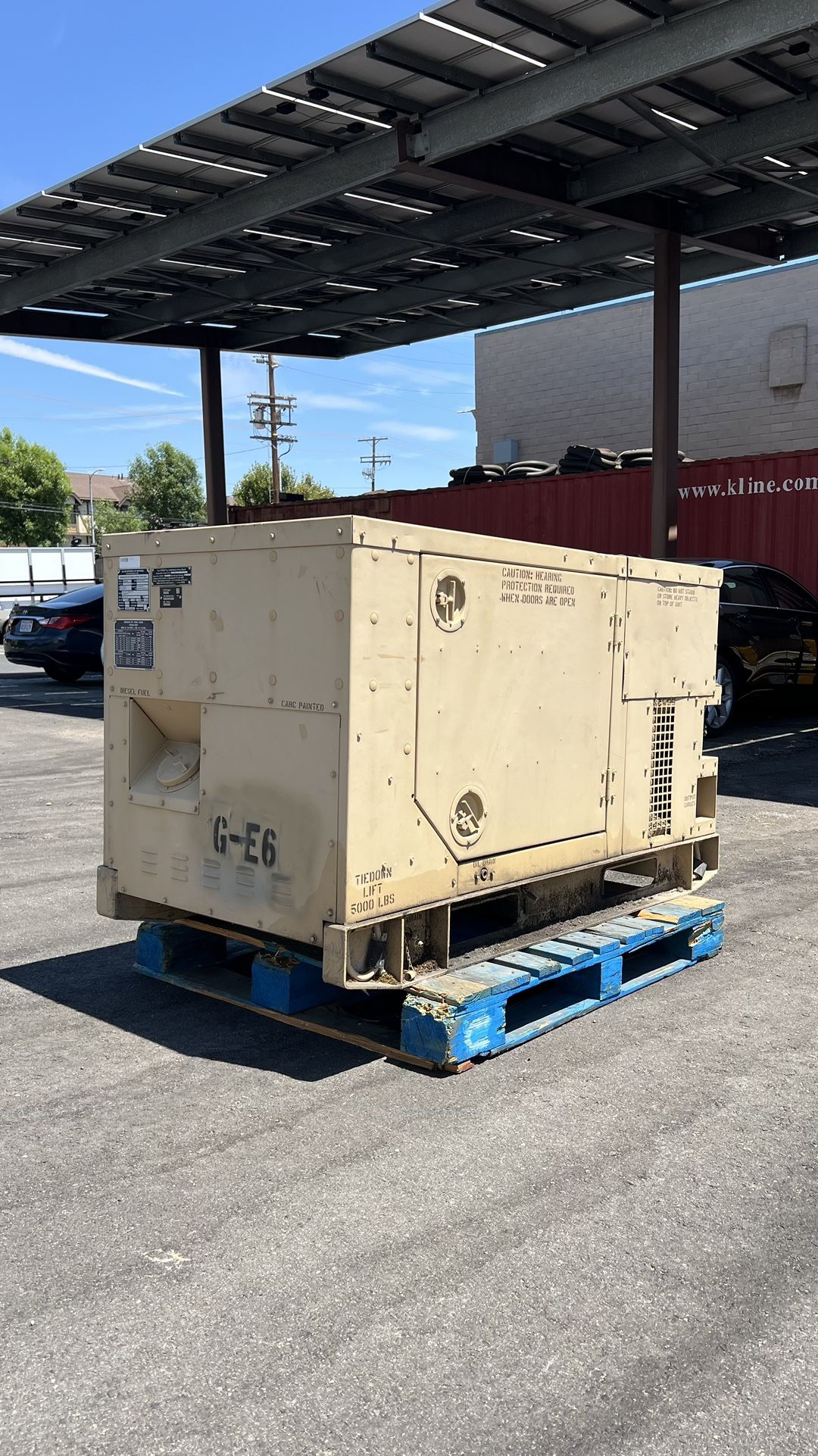

10KW-MEP1040-60HZ (mep803a) Tactical Military Diesel Generator

Phase

Single & 3-phase

Power Source

Diesel

Type

Military surplus

The MEP 803A is a 10kW (10,000 watt) generator producing 60Hz of electric power. The MEP 803A is fully enclosed and self contained, it weighs 1140lbs dry, and 1242lbs with a full fuel tank. The MEP 803A is 32 wide, 37 tall, and 62 long and can be mounted on a M116A3 trailer. The MEP 803A engine is an Onan, naturally-aspirated, four cylinders, four cycle, and liquid cooled diesel engine. The engine idle speed is 1745 RPM. The horsepower rating is 24.1 HP at 1800 RPM. The diesel engine has an oil capacity of 5.9 quarts (5.6 liters), and normal operating pressure is 25 – 60 PSI. The cooling system has a capacity of 8.2 quarts (7.8 liters), and normal operating temperature is 170°F – 200°F. it is equipped with a 9 gallon (34 liters) fuel tank, allowing eight hours of continuous operation at a full load. The MEP 803A will consume .99 gallons (3.75 liters) per hour. When the MEP 803A is connected to an auxiliary fuel system, it will be continually replenished. The MEP 803A is designed to use DF-1, DF-2, JP-4, JP-5, or JP-8. It has a 24VDC cranking system. The 24VDC comes from two 12V batteries, connected in series. The output voltages for this unit are 120VAC single phase at 104 amps max, 120/240VAC single phase at 34 amps max, and 120/208VAC three phase 52 amps max.

Brand

Fremont
