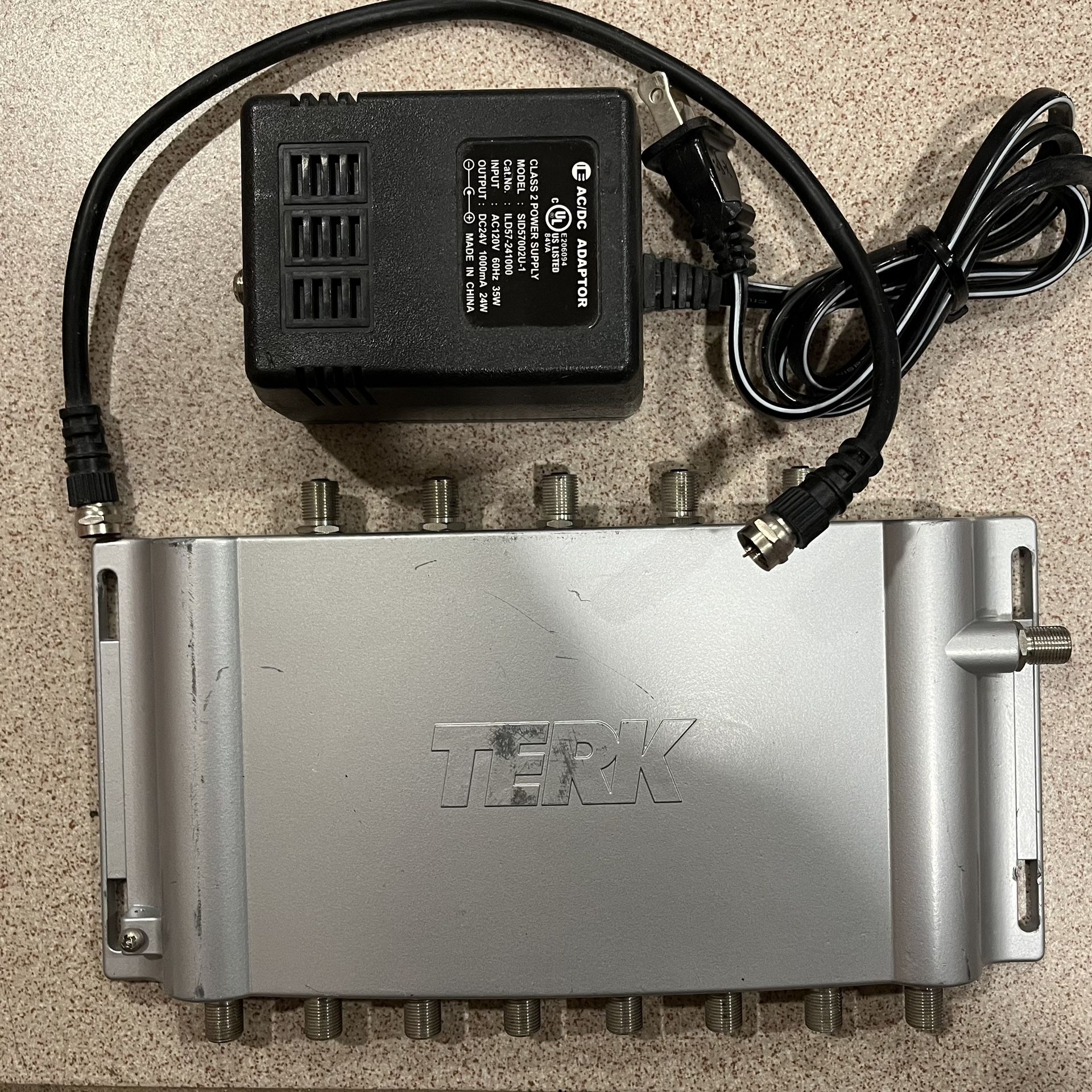

Terk BMS-58 Integrated 5x8 Satellite Multi-Switch w/ Power Supply

Overview and Specifications If you have a triple-satellite dish that lets you receive both standard and High-Definition satellite TV channels, Terk's BMS-58 will add flexibility to your viewing options. You can connect independent satellite receivers in up to eight different rooms, allowing every family member or housemate to watch a different show at the same time. Many video switchers on the market were designed with dual-satellite dishes in mind, and only let you watch channels from two satellites at a time. But the BMS-58 lets you watch programs from all three, so you'll have access to all your subscribed channels in every viewing location. It can also send over-the-air antenna or cable signals to each TV, putting an even greater range of programming at your fingertips. Product Highlights: 5 coaxial "F-type" connections — 4 for connection to a triple-LNB satellite dish, 1 for over-the air antenna or cable DC pass capability to power amplified antennas or DBS satellite systems weatherproof housing waterproof F-connectors frequency range: 54-2150 MHz 75-ohm impedance matched for a better picture insertion loss: antenna -5 dB typical, satellite 0 dB typical cross-polar isolation: 30dB minimum
