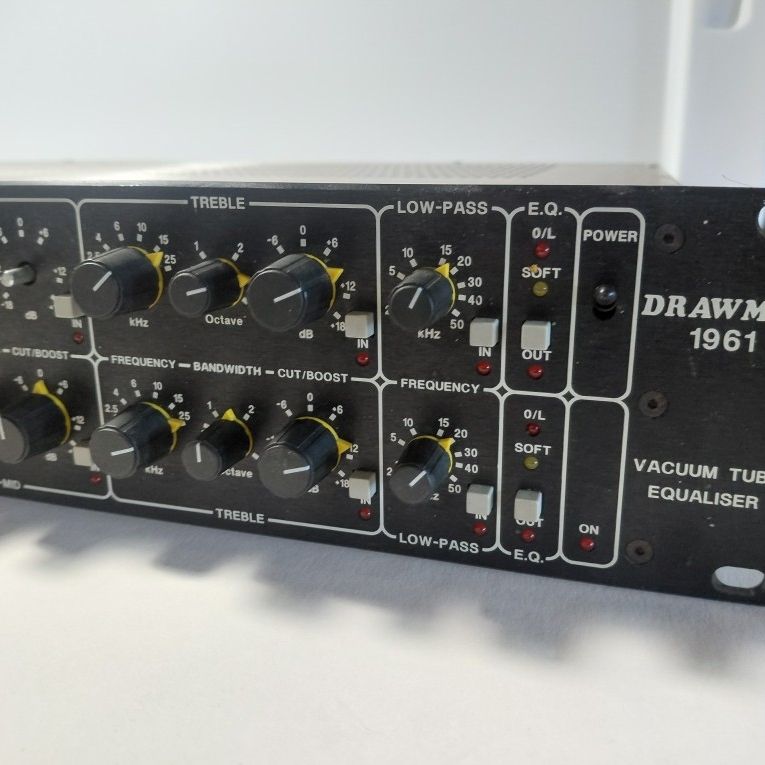

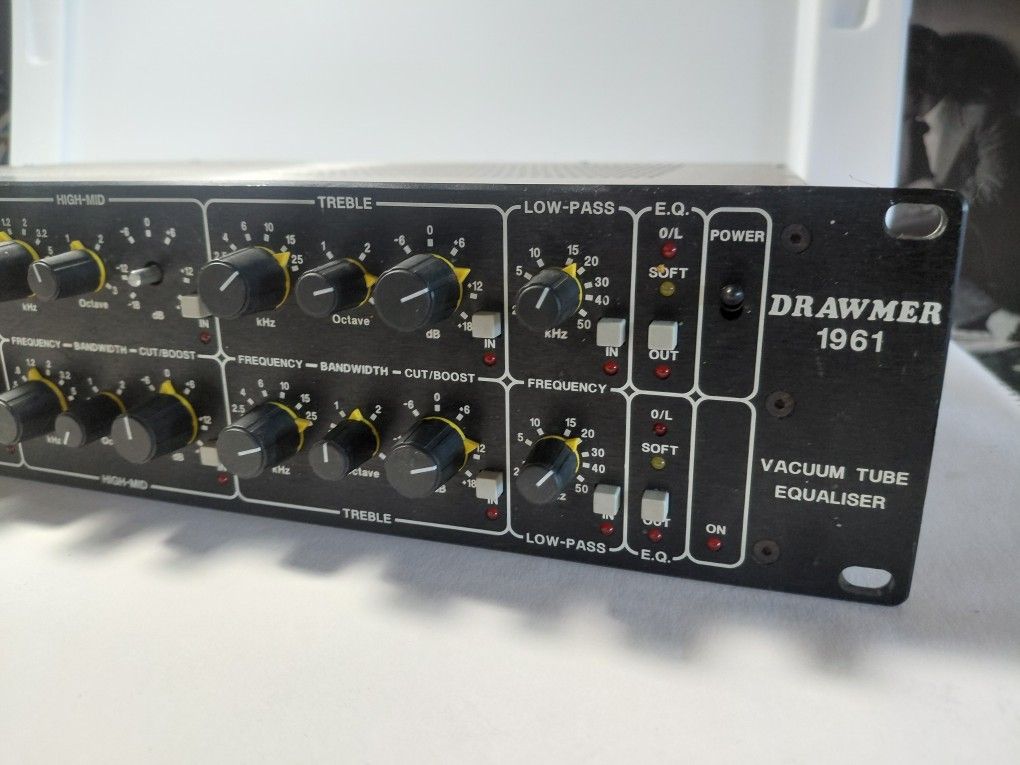

Drawmer 1961 Stereo Tube EQ

Great stereo tube eq just needs some tlc. IO and bands are scratchy but a simple clean this is a solid color enhancer. Open to offers feel free tolow ball me. Facilities available on the 1961 include: A variable input level of -20dB to +20dB ensures compatibility with a wide range of input source material and enables the user to optimize signal level and drive the tubes 'soft' or 'hot' as required. LED bargraph displays give a clear indication of the input signal level. High Pass Filter. A variable 12dB/Octave roll-off filter adjustable from - 20Hz to 500Hz section enables the user to remove unwanted low frequencies and sub-sonic noise. Each channel of the 1961 has four main equalizer sections with six carefully chosen overlapping frequencies and a separate tube stage for increased harmonic clarity. Each section also includes variable band width from 0.3 Octave to 3 Octaves and +18dB of Cut and Boost. BASS frequencies (Hz) 20, 32, 50, 80, 125, 200 LO-MID frequencies (Hz) 100,180, 250, 400, 650,1K HI-MID frequencies (kHz) 0.5, 0.8,1.2, 2.0, 3.2, 5.0 TREBLE frequencies (kHz) 2.5, 4, 6,10,15, 25 A variable 12dB/Octave roll-off filter adjustable from 2.5kHz to 42kHz enables the user to remove high frequency interference or to band limit excessively high levels of high frequencies. Two additional tube stages in the output section of each channel allow the user to achieve 'soft clipping' by adjusting the input level control whilst visually monitoring the effect upon the 'Soft' and 'O/L' (Overload) LEDs.
