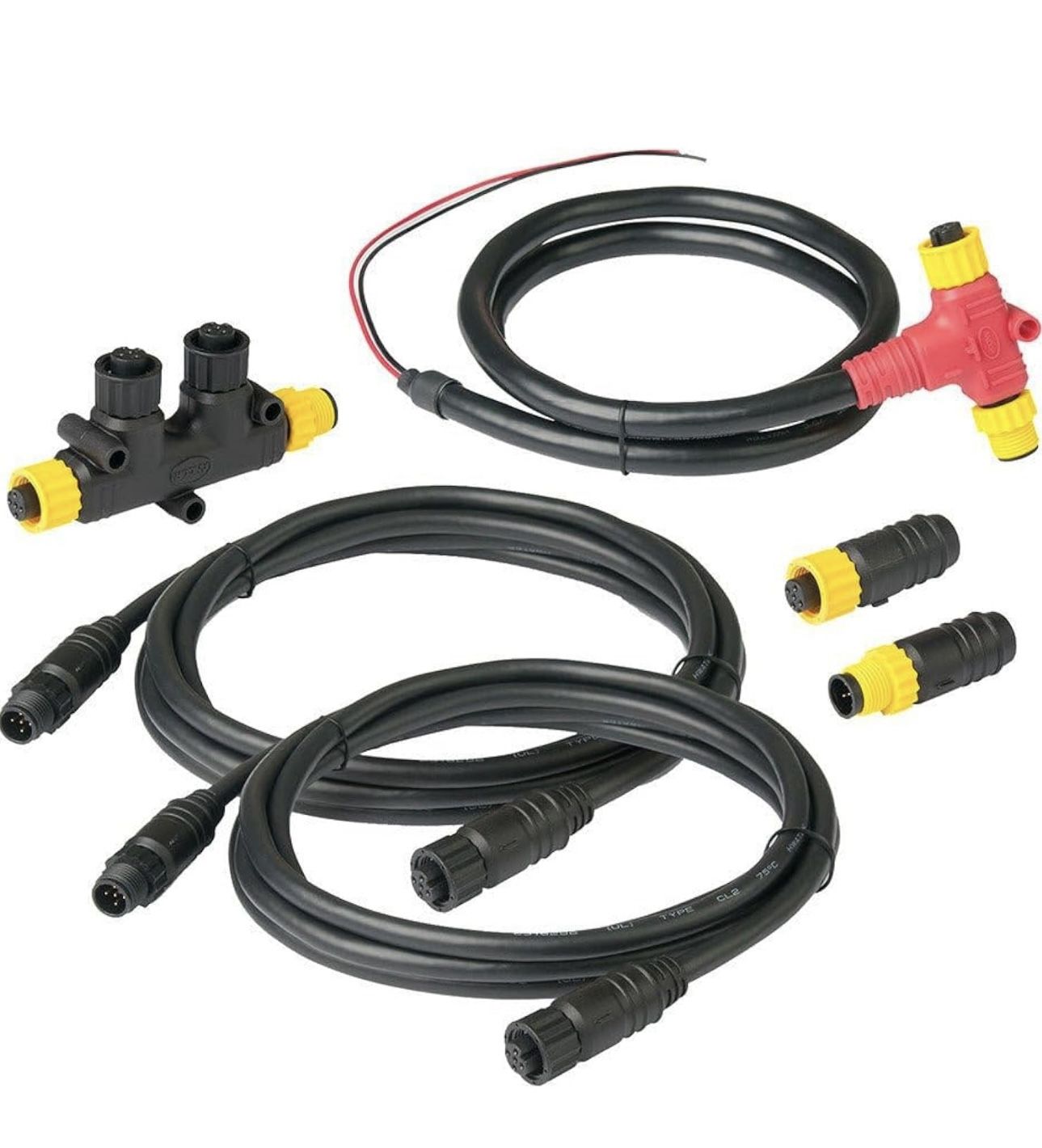

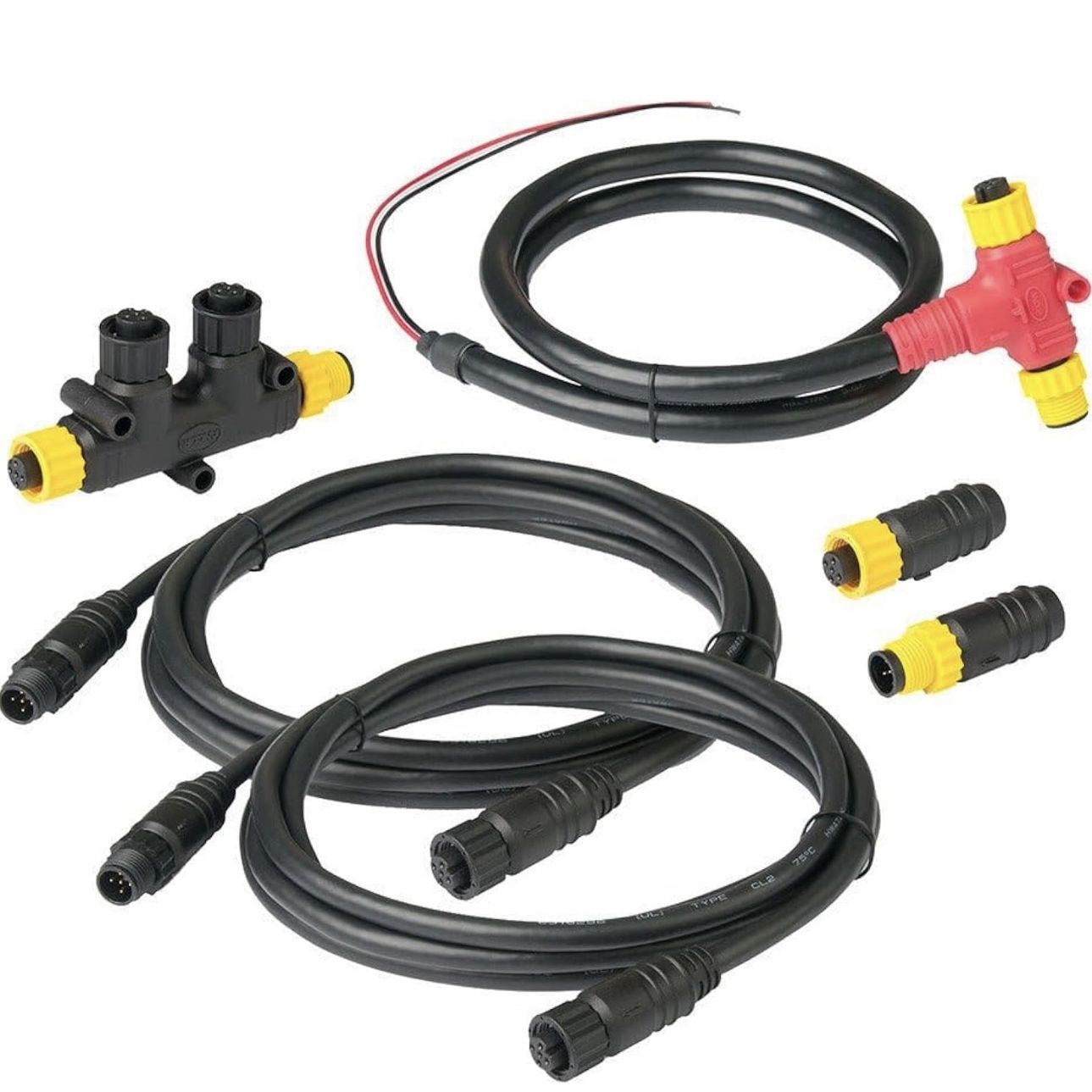

Ancor 270202 Marine Grade NMEA 2000 Dual Device Starter Kit

About this item 1 meter power cable with Tee, item# 270000 Male and female terminators (1 each), item# 270105 and 270106 One dual Tee Connector, item# 270103 Two 2 meter drop cables, item# 270302 Included components: Two 2 meter drop cables Product Description marine grade wire, ancor marine, marine grade battery cable, duplex wire, triplex wire nmea 2000 Ancor NMEA 2000 Cables & Connectors Premium Quality. Universal Fit. nmea 2000 Backbone Cables Large gauge cable to provide better network reliability and reduce voltage drop for critical backbone connections. nmea 2000 Drop Cables Super flexible cable for ease of installation and wire routing. nmea 2000 Accessories Everything needed to correctly build a NMEA 2000 network. nmea 2000 Starter Ktis Easy to install starter kits include all necessary components needed to build a new NMEA 2000 network. nmea 2000 Ancor Network Color Coding System Yellow & Black Couplers All backbone cables and backbone accessories come with a yellow coupler to make identifying the network backbone easy. Drop cables and accessories that should be connected to drop cables all come with black couplers. Red Power Drop (Tee) The red tee of the power tee makes finding the power connection as easy as possible in hard to reach consoles or compartments where batteries may be stored. Blue Power Isolation In specialized applications, for example connecting a screen that also has its own power connection, a power isolator is needed to ensure that the NMEA network only has one source of power. This can be managed and easily identified with the blue power isolator. (If you are unsure of the application for this product please contact a NMEA certified installer for more info) Benefits Color coding makes installing a new system easier and more efficient Adding tees and drop cables is easier because you know where you can create a break and add tees nmea 2000 Difference Between Ancor Backbone Cables & Drop Cables Wire Gauge Ancor backbone cables are produced with a larger gauge size cable than other cables on the market to help increase network reliability and reduce voltage drop across a network backbone which can at times span long distances. Ancor drop cables, which are typically a much shorter distance, are produced with a smaller gauge wire than our backbone cables allowing them to be routed more easily through bulkheads or behind panels. Coupler Colors Backbone cables which are made of the larger gauge wire are easily identified by the yellow couplers on each end which connect to yellow couplers on tee connector. Drop cables and their black couplers then connect to black couplers on the bottom of tees or to other helpful accessories like our 90° elbow, which helps to reduce tight bends in the drop cable which can effect performance. Benefits Large gauge cable results in a more reliable network Smaller gauge cable is easier to route Color coded system takes the guess work out of knowing which cable is which

Condition

Open Box (never used)

Brand

Marinco Electrical Group
