ETEPON Assembled EM001 Digital Oscilloscope with Detailed Operation instructions

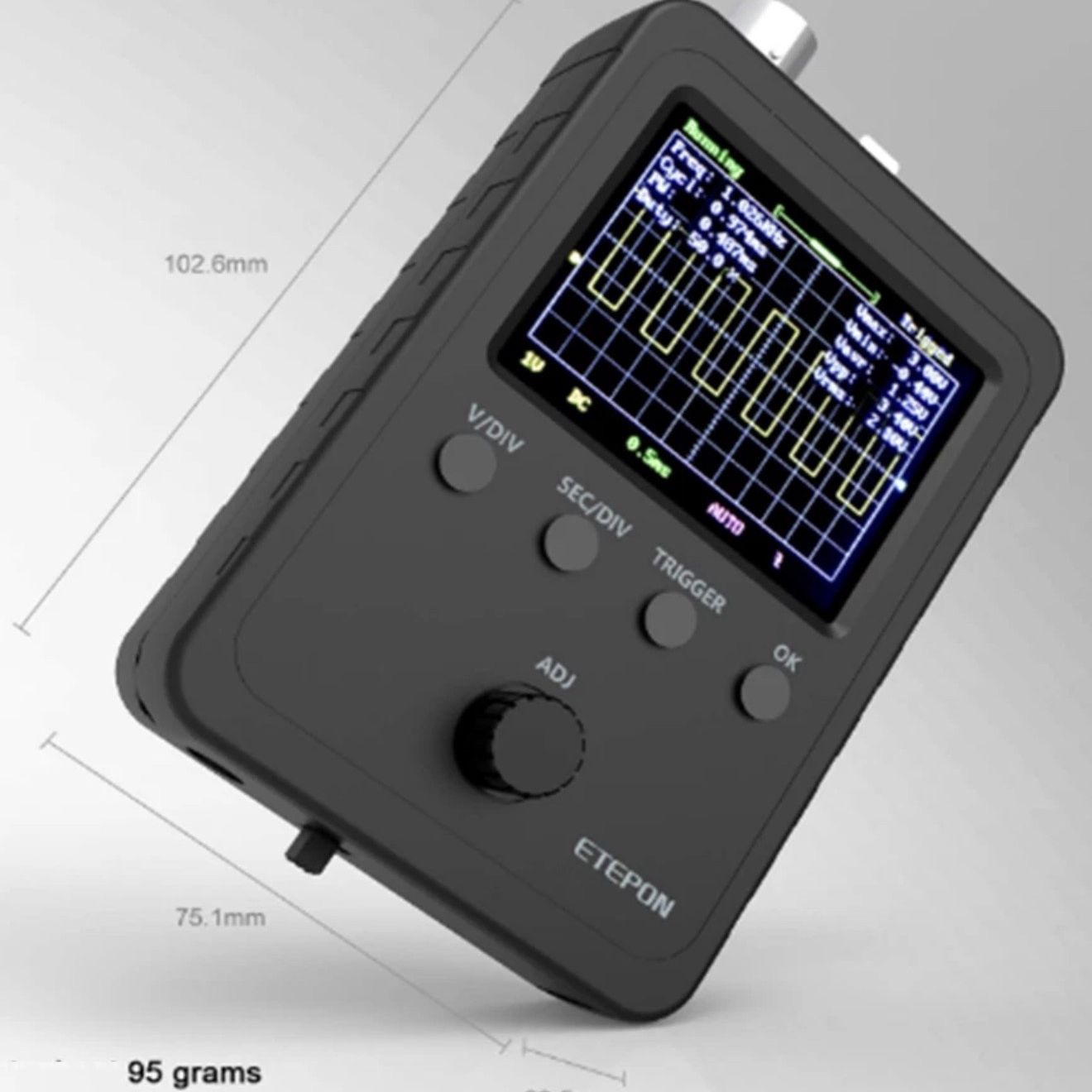

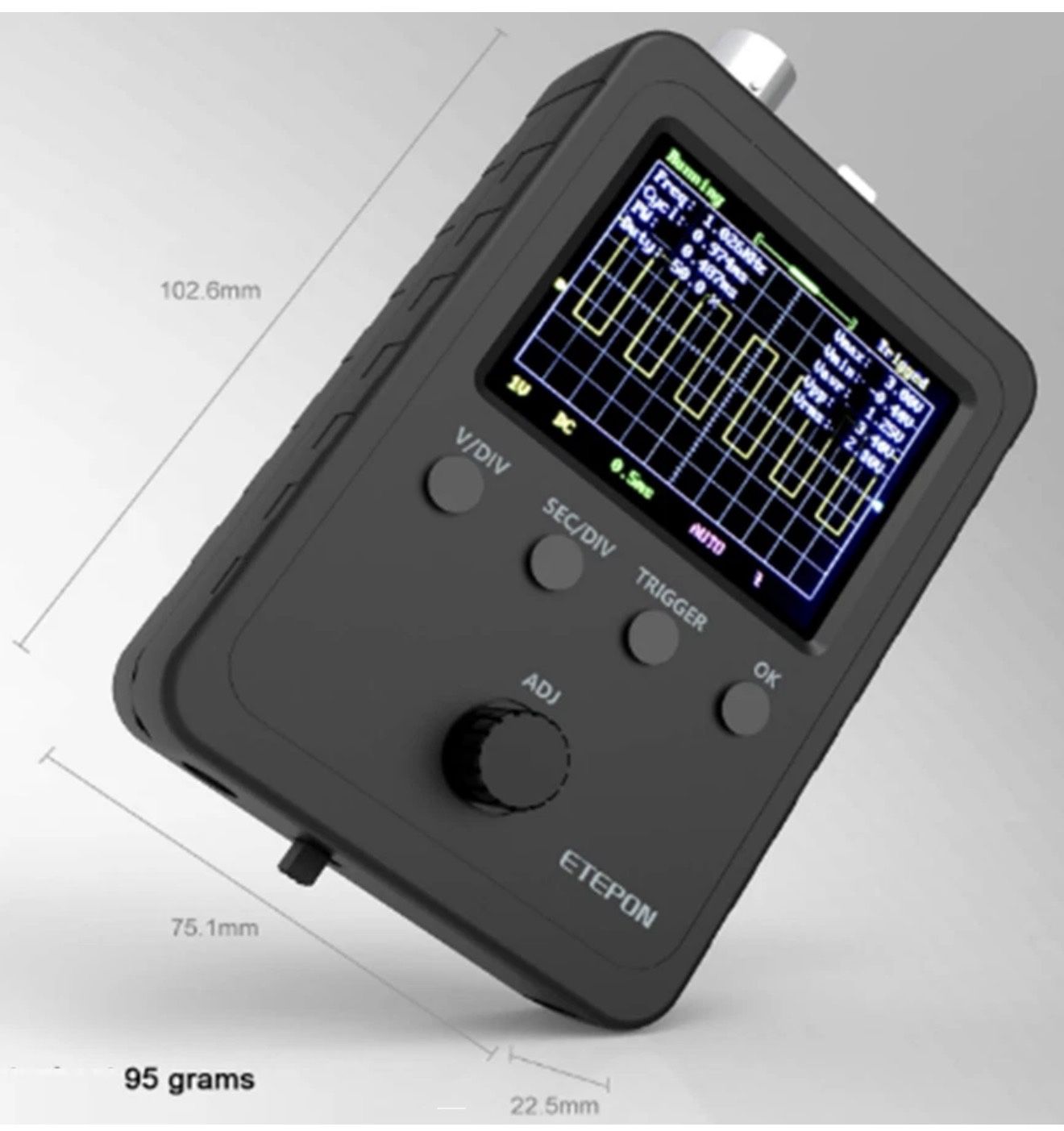

ETEPOPN EM001 digital Oscilloscope assembled finished machine. The sensitivity of the EM001 reaches 5mV/div - 20V/div It has the rotary encoder makes parameter adjustment more quicker and easier Number of Channel 1 Analog Bandwidth 0 - 200KHz Sensitivity 5mV/Div - 20V/Div Sensitivity error < 5% Resolution 12-bit Input Impedance 1M ohm Maximum Input voltage 50Vpk Coupling DC, AC, GND Trigger Modes Auto, Normal, Single Trigger Types Rising/falling edge Trigger Position 1/2 of buffer size fixed Display 2.4 inch color TFT LCD with 320 x 240 resolution Power Supply 9V DC (8 - 10V acceptable) Dimension 115mm X 75mm X 22mm Weight 96 gram
