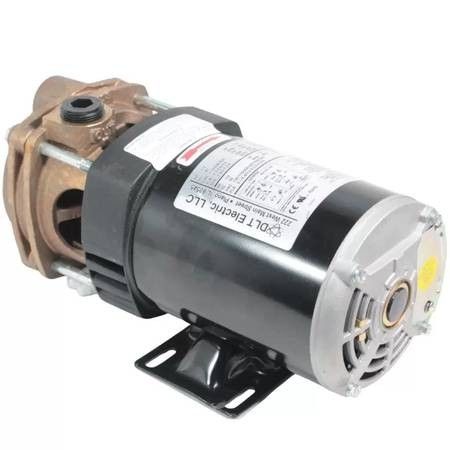

MTH T41 Series Regenerative Turbine Pump

MTH T41 Series Regenerative Turbine Pump Turbine pumps produce higher pressures than typical straight centrifugal pumps and are optimal for boiler feed systems that require high pressures and heads. Turbine pumps are sized by horsepower (HP) and pair with motors of the same HP to meet application pressure and flow rate requirements. As pounds per square inch (PSI) increase, so does feet of head. MTH Pump DLC-1242-03-ODP C3 Style 56C Face Motor. 1/3 HP, 1 Ph (Single Phase), 60/50 Hz, 115/208-230; 110/220 Volt, 3450 / 2880 RPM, 2 Pole, ODP - Open Drip Proof Enclosure, 56C Frame. HP 1/3 Hz 60/50 Motor Enclosure Type ODP - Open Drip Proof Motor Frame Size 56C Part Type Motor Phase 1 Ph (Single Phase) Pole: 2 Quick Specs C3 Style 56C Face Service Factor 1.6 / 1 Speed (RPM) 3450 / 2880 Voltage 115/208-230; 110/220 IP21 enclosure and range from 1/3HP to 2HP. All D3 motors feature a 304 stainless steel shaft and CE mark approval. T41 pumps can accept most commonly available motors through the use of close or flexible coupling. For wider fluid compatibility, T41 units 3HP and under feature a protective motor shaft sleeve, while motors 5HP and over utilize a corrosion-resistant 316 stainless steel shaft. Motor for the T41 Series comes in ODP enclosures and allow operation at two pole speeds (3450/2880 or) with 1/3HP Steep Operating Characteristics Near-constant capacity is maintained over wide variations in pressure. High shut-off pressure overcomes temporary line resistance. Self-Adjusting Impeller A hydrodynamic film on each side of the impeller positions it for long life. The impeller exerts no thrust load on bearings. Pump operates equally well in a vertical or horizontal position

Condition

New

Features

Heavy-duty

Power Source

Corded electric

Brand

Mth
