$2,500

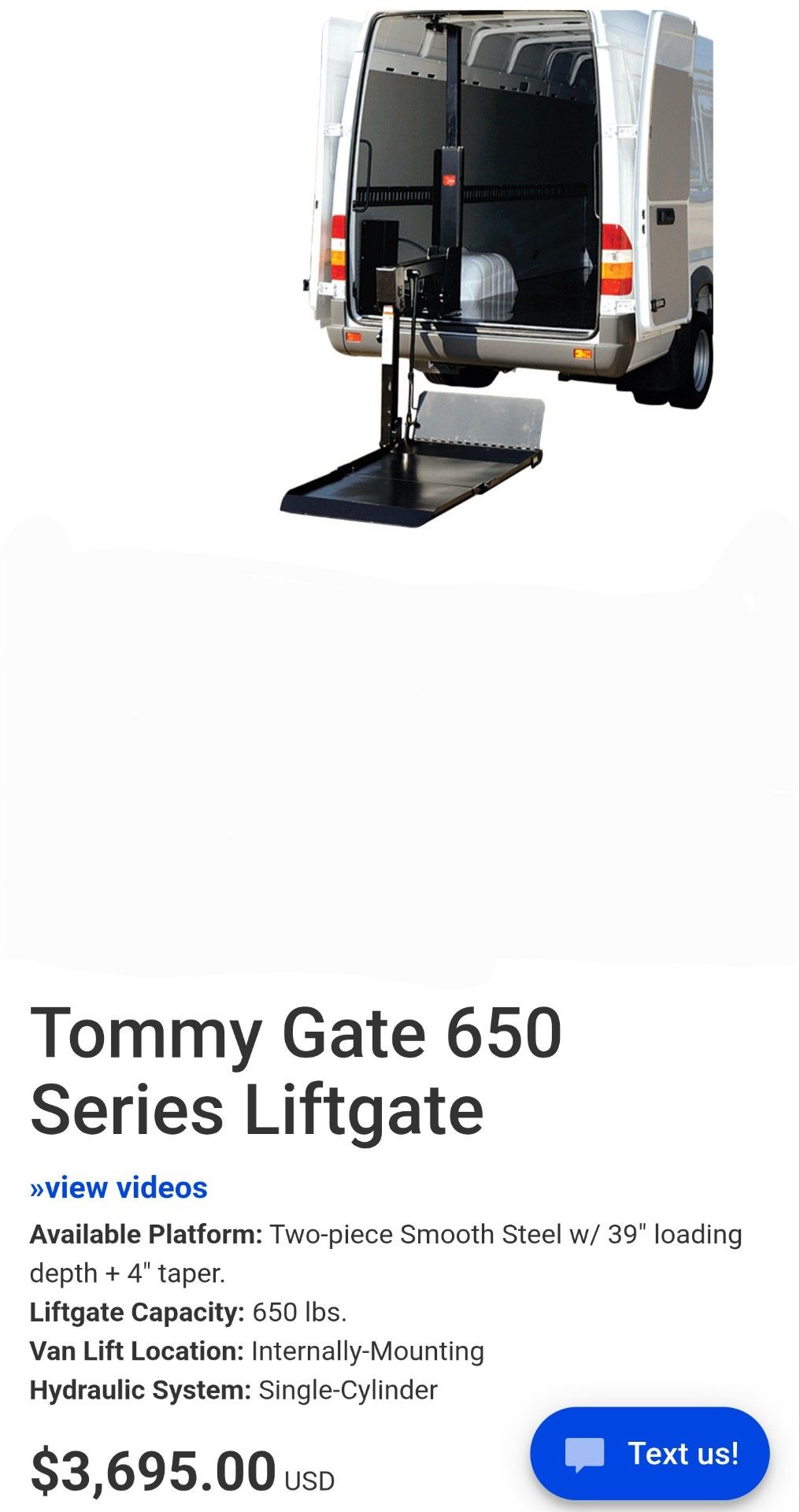

Tommy Gate lift

Posted in Los Angeles, CA

Listed in categories:

Sold by

✔️✔️

✔️✔️

Joined Dec 2015

|

(120) offer up reviews

Chat securely on the app

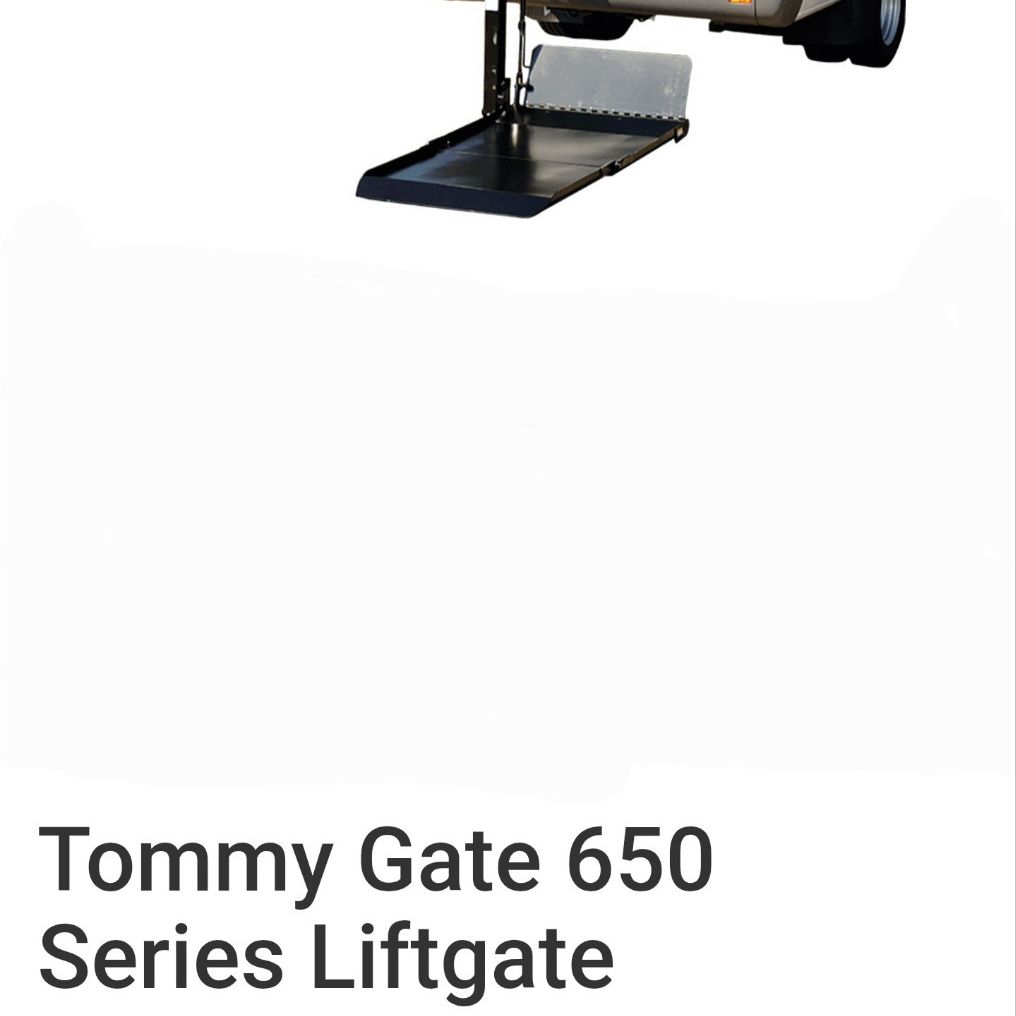

Image #1

Additional images

Description

Model: 650 Application: Cargo Van Capacity: 650 Platform Detail: Smooth Steel Two-piece Smooth Steel w/ 39" loading depth + 4" taper Drive System: Hydraulic Cylinder Hydraulic System: Enclosed Pump and Motor: Easy access for servicing. Pressure Relief Valve: Prevents operator from overloading the platform. Cylinder Mounted Flow Control Valves: Prevents uncontrolled descent of platform. Electrical System: Control Unit: Moisture resistant toggle switch / deactivates 90 seconds after last operation (helps prevent unauthorized use) / timer reset and on-off button permanently and conveniently located on control unit and positioned under logo and bulls eye respectively. Circuit Breaker: 150 Amp Continuous, 3000 Amp Interrupt, 30 VDC, Watertight, Manual Reset. Mounted in-line with 4 AWG positive battery cable, protects vehicle in the event of an electrical short. Power/Ground Cable: Factory supplied 4 AWG ground cable molded with power cable. Providing a direct connection from liftgate to truck battery. Insulation rated for -40°C (-40°F) to 105°C (221°F). Drive Train: Main vertical lift tube: 4" (102mm) square x 7Ga. (4.6mm) wall. Vertical Lift Tube: 3" (76mm) square x 1/4" (6.4mm) wall. Cylinder and arm pins: 1" (25mm) OD Steel Round. Bushing at all wear points: Bronze, oil impregnated. Safety: Control Unit: Timer deactivates 90 seconds after last operation (helps prevent unauthorized use). Pressure Relief Valve: Prevents operator from overloading the platform.

All content is available to screen readers from the outset. The See more button is for visual users only to expose content incrementally that is already available to you

Details

Condition

Used (normal wear)

Type

Liftgate

Brand

Tommy Gate Co
