Contractor Tool surveyors Instrument

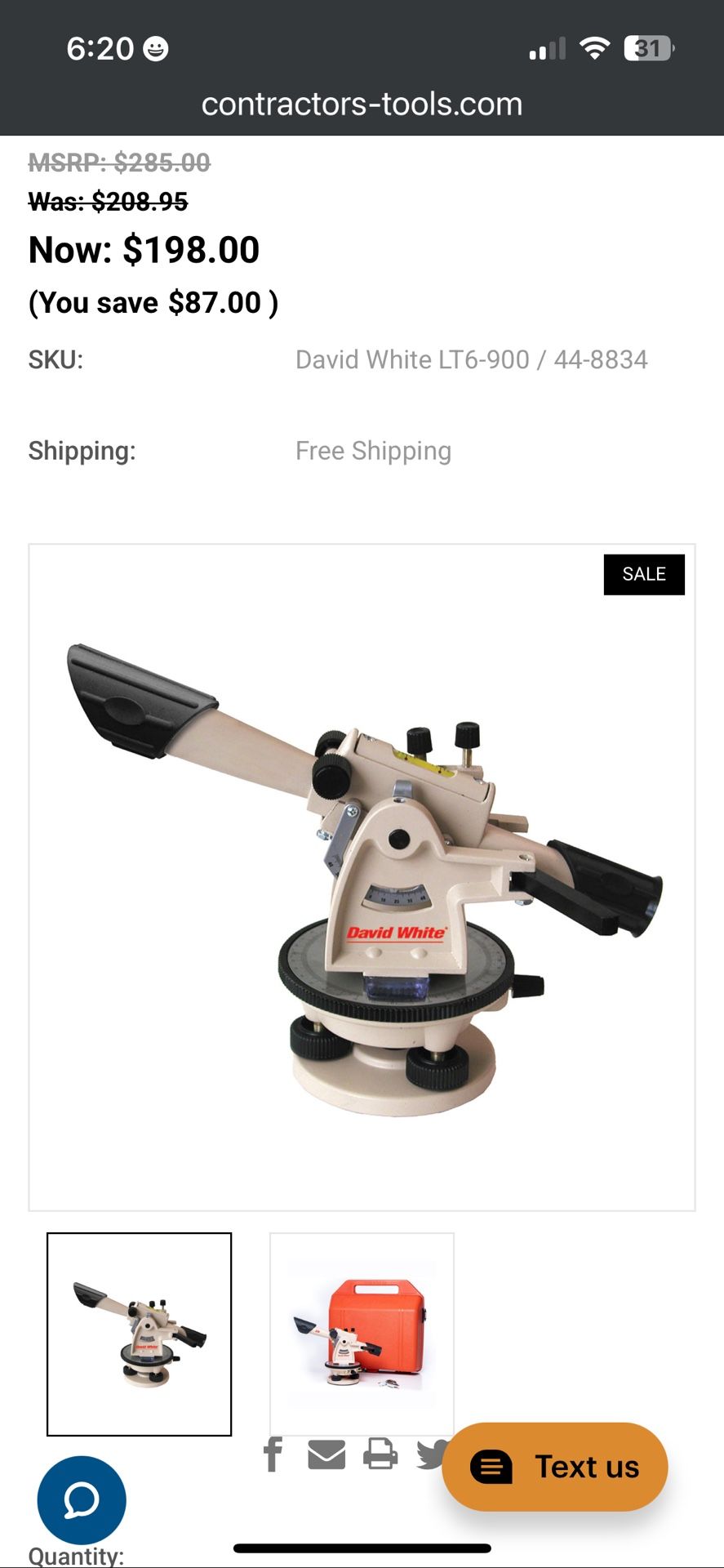

David White LT6-900 22X MERIDIAN TRANSIT-LEVEL Modestly priced and easy to use, these instruments are designed for light construction work for leveling, turning angles, and determining vertical angles. ± 1/4-inch at 100-feet leveling accuracy Up-to 200-foot range Horizontal Circle– Graduated to single degrees and reads by vernier direct to 1/4 degree (15 minutes) Features a Vertical Arc– Read to degrees (0-45º) Horizontal Lock and Tangent Screw– Provides precise movement control Built-in Sunshade – For clearer sightings Leveling Vial – Top mounted for effortless viewing David White LT6-900 MERIDIAN TRANSIT-LEVEL INCLUDES 44-8834 (LT6-900) Transit-Level Instrument Plumb Bob Heavy-Duty Hard Carrying Case Owners Manual 2-Year Warranty David White 44-8834 Transit-Level SPECIFICATIONS Accuracy: 1/4 in at 100 ft Range: Up to 200 ft Telescope Magnification: 22-power Length: 10.5-inch Minimum Focus: 4 ft (1.2 m) Aperture: 0.75-inch Field of View: 2-feet @ 100-foot No. of Lenses: 6 Horizontal Circle Graduation Diameter: 3.62-inch Graduations: Each 1° Numbers: Each 10°, 0-90-0° Vernier: Double direct to 15 min. Vertical Arc Graduations: Each 1° Numbers: Each 10°, 45-0-45° Other Center: Planar bearing Level Vial: 10 min. per 2 mm Weight: 4.5 lbs David White 44-8834 Transit-Level APPLICATIONS Short range leveling Turning angles, establishing 90° reference lines Determine vertical angles, basic grade work Checking angles, alignment and plumb Anchor bolt alignment Gravity flow pipe laser set-up Aligning Forms Aligning Walls

Condition

New
