Miller Spectrum 375 Plasma Cutting System

Type

spectrum 375 plasma cutter

Brand

Miller

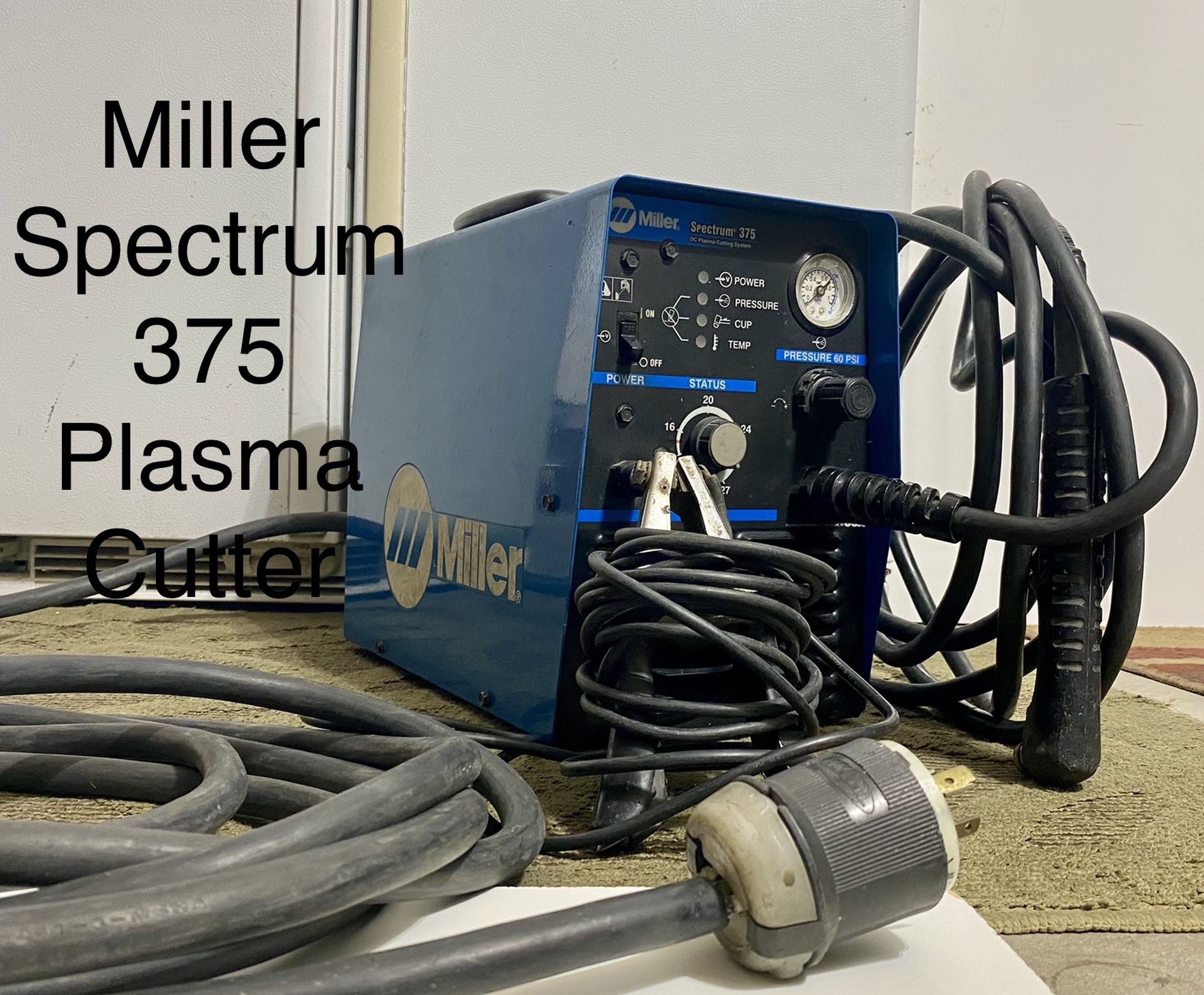

700 OBO Here we have a miller 375 DC plasma cutter comes with everything you see in the pictures Works great Quick Specs Industrial Applications Maintenance Light Construction Prototyping Body Shops Fabrication HVAC Ductwork Process Air Plasma Cutting Rated Output 27 A at 92 VDC, 35% Duty Cycle Cutting Capability Rated: 3/8 in (9.5 mm) Sever: 5/8 in (15.9 mm) Weight With torch: 55 lb (25 kg) Required Input Pressure/Flow 4.5 SCFM (128 L/min) at 90 PSI MIN (621 kPa) 120 PSI MAX (828 kPa) The Power of Blue®. •Dual input voltage located in back of unit allows either 115 or 230 VAC input power and provides patented protection in case of incorrect switch position. Unit provides full cutting capacity when powered by most engine-driven welders with 240 VAC auxiliary receptacles. •Starts without high-frequency so it will not interfere with controls or computers. •Pilot Arc Controller increases cutting capabilities and speeds, and improves tip life. •LVCTM line voltage compensation provides peak performance power under variable conditions (power fluctuations up to ±15%) for steady cuts and cleaner ending cuts. •Power factor correction expands operator’s work area via extension cords while minimizing nuisance trips caused by voltage drops. •LED indicators for pressure, power, cup and temperature allow faster troubleshooting, eliminating unnecessary downtime. •Can be powered by any Miller engine drive with generator power (e.g. BobcatTM) or equivalent competitive equipment. See page 3 for engine drive compatibility and recommended settings. •Consumables storage compartment provides convenient access to consumables and parts. Postflow cooling circuit extends the life of the consumables and torch by cooling them with postflow air after the trigger is released. •Includes heavy-duty clamp. Ergonomic design ICE-27C torch with increased comfort, safety trigger, and improved swirl ring and cup. Accepts consumables from prior ICE-25C model torch. •Gas/air filter/regulator inside the power source provides added protection during transportation. Standard air connection on back panel for easy gas or air hookup
