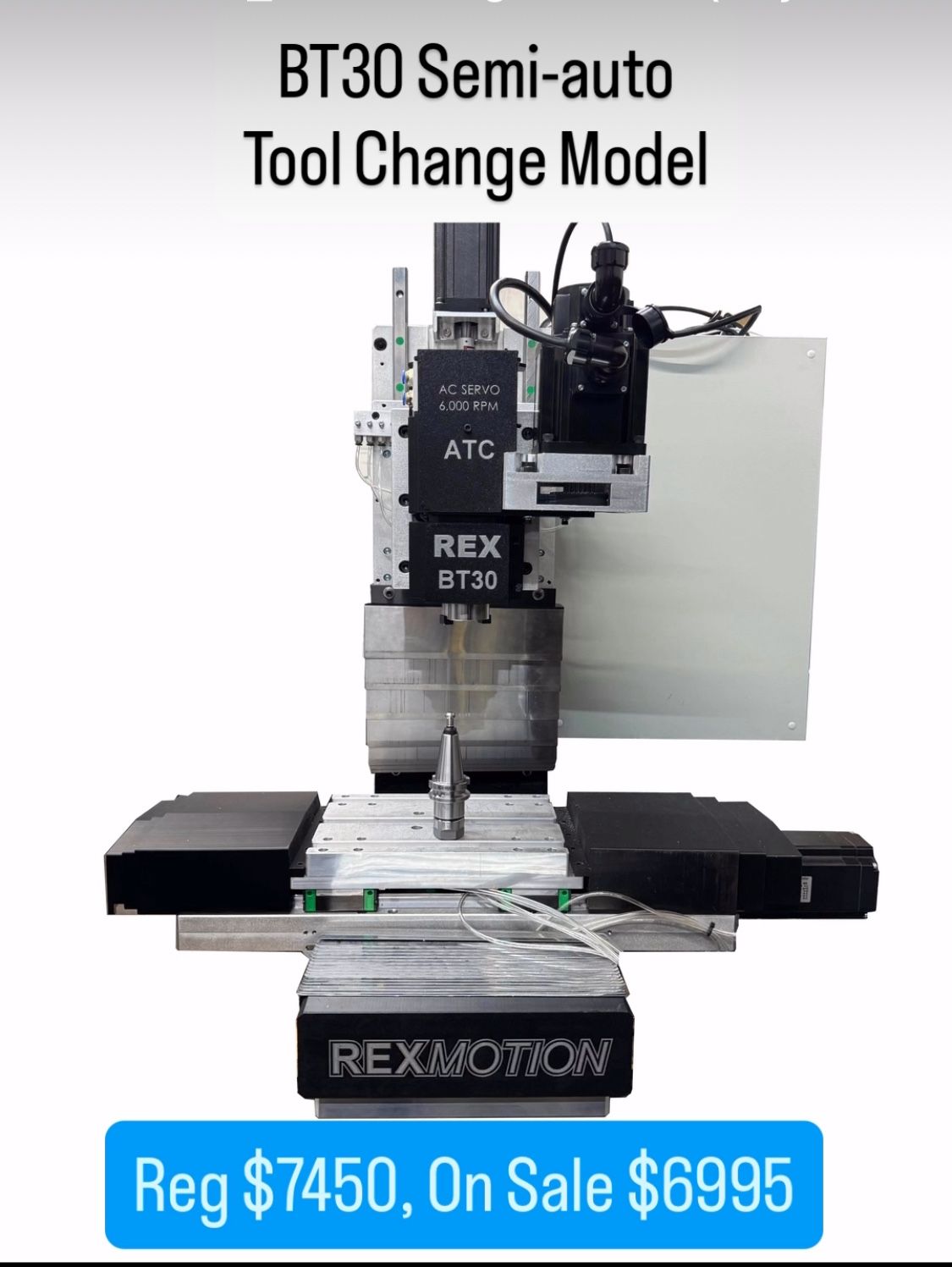

Mini Mill For Sale Semi Auto Tool Change

Rexmotion REV 1 Mini Mill 95% Assembled Semi Auto tool change BT30 high torque at lower RPM. No Controller. More images to come. Capable of full auto auto tool change (8 station) with controller upgrade and hardware add on for your future build (DIY). Demo Condition (12 hours of use): There are some imperfections (broken taps, etc. but the machine is operational.) Frame, Linear Bearings, Ball screw, Motor, Driver, BT30 ATC Spindle (Used for Semi Auto Tool Changes, DDCS Controller, and Ball screw cover. ** Some Assembly Required ** This machine is 95% built. All repairs are on site at Rexmotion facility in California. The buyer must be willing to troubleshoot and make all repairs on their own with the assistance of Rexmotion. ** 4-6 weeks lead time ** The billet aluminum parts are designed and machined in Southern California. MADE in the USA! This item is great for those who want to add on their own particular parts but do not want to make their own cnc mill frame. These parts will allow for you to make your own build with ease and it will look very nice when done compared to other home made design suggestions out there. The frame is cnc milled from 6061-T6 aluminum. Parts that come with this sale: 20mm linear rails, cap screws. (installed) 20mm Square bearings with no flange. (installed) Motor mount frame Designed to fit Nema 34, cap screws. (installed) 16mm Ball screws. 1605 for accuracy compared to 1610. (installed) Grease plumbing. (installed) Grease manifold with grease nipples. (installed) 3x Couplers with .500" ID or 14mm to motor shaft. (installed) Home switches for X, Y, and Z. (installed) ​ Spindle used as Semi-Auto Tool Changes. BT30 0-6,000 rpm 220V input single phase 1.8KW motor The motor is 3,000 rpm with a 2:1 pulley ratio. 6,000 rpm at the spindle. Air requirements of 115 PSI Includes BT30 Tool Holder ER20. Will have a button for releasing and pulling in the tool. ​ DDCS Controller 4 Axis. 1) Max. 5 Axis;2-4 Axis linear interpolation, any 2 axis circular interpolation; 2) 7 inch full color display screen; resolution ratio: 1024*600,40 operation keys; 3) 24 photoelectric isolated digital inputs,21 photoelectric isolated digital outputs; 4) Analog spindle control 0-10V spindle control, also support PWM Output; 5) Magazine type: Supports multiple spindle mode, support straight Tool Magazine, gantry type Magazine, disk type magazine; 6) Probe Mode: Support auto-probe and manual probe; Support Probe of Fixed position of tool sensor, Probe of Floating tool sensor, first probe/second probe; 7) Backlash compensation methods: direction gap compensation, radius gap compensation, length compensation; 8) Interpolation Algorithm: S type, circular hard algorithm, circular soft algorithm; 9) Language: Chinese, English; 10) Software Alarms: Program Error, operation Error, overtravel Error, Driver Error and so on; 11) Network: Support file share and online machining the remote files by Ethernet; 12) Spindle control mode, Multi-speed (4 lines 16 kinds speed); 13) Compatible with standard G-code, support popular CAD/CAM software, such as ArtCam, MasterCam, ProE, JDSoft SurfMill ,Aspire, Fusion 360 and so on; Control Box, Motors, and Drivers Includes an enclosure for the drivers, power supply, and motor driver. (installed) 12nm closed loop Nema 34 Motors for X, Y, and Z axis. (installed) Drivers to match the motors. 3M cables. (installed) X and Y 100 ipm - Direct Coupling to Ball screws Z 50 ipm- Direct Coupling to Ball screws ​ Frame (Design and made in the USA): Aluminum 6061-T6 Billet Y Base: Billet at 10" x 28" x 1.50" X Base: Billet at 8" x 23" x 1.5" Table: Billet at 8" x 10.5" x 1.5" Z Front: Billet at 10" x 30.5" x 1.5" Z Sides Support 5" x 30.5 x 0.625" CNC Nema 34 Mount ​​ Travel: 9" x 7" x 10" With Bearing Covers (X,Y, Z) ​ Footprint: 41"x36"x45" ​ Bearing Covers (way Covers): Sides X: 3D printed ABS Front Y: Steel on Top, cloth on sides. Back Y: 3D printed ABS Front Z: Steel on 3 sides ​ ​​Bearing 20mm linear rails 16mm Ball screws, Provides 0.00035" resolution. ​​​ ​Warranty: 1 Year warranty. All repairs are on site at Rexmotion facility in California. The buyer must be willing to troubleshoot and make all repairs on their own with the assistance of Rexmotion. ​ Support: USA Based local support, (Southern California) ​ Shipping Weight: 500 to 1000 LBS - depends on options Woodend crate Rough Estimate. $700 West USA, $950 Med USA, $1350 South East , $1550 North East USA. Options with changes to the price. 8 Station ATC umbrella +$1100 Air logistics for ATC +$200 Masso Advanced $2000 for additional axis and ATC capacity Please contact us, we can configure this item for you.

Condition

Used (normal wear)

Brand

Rexmotion
