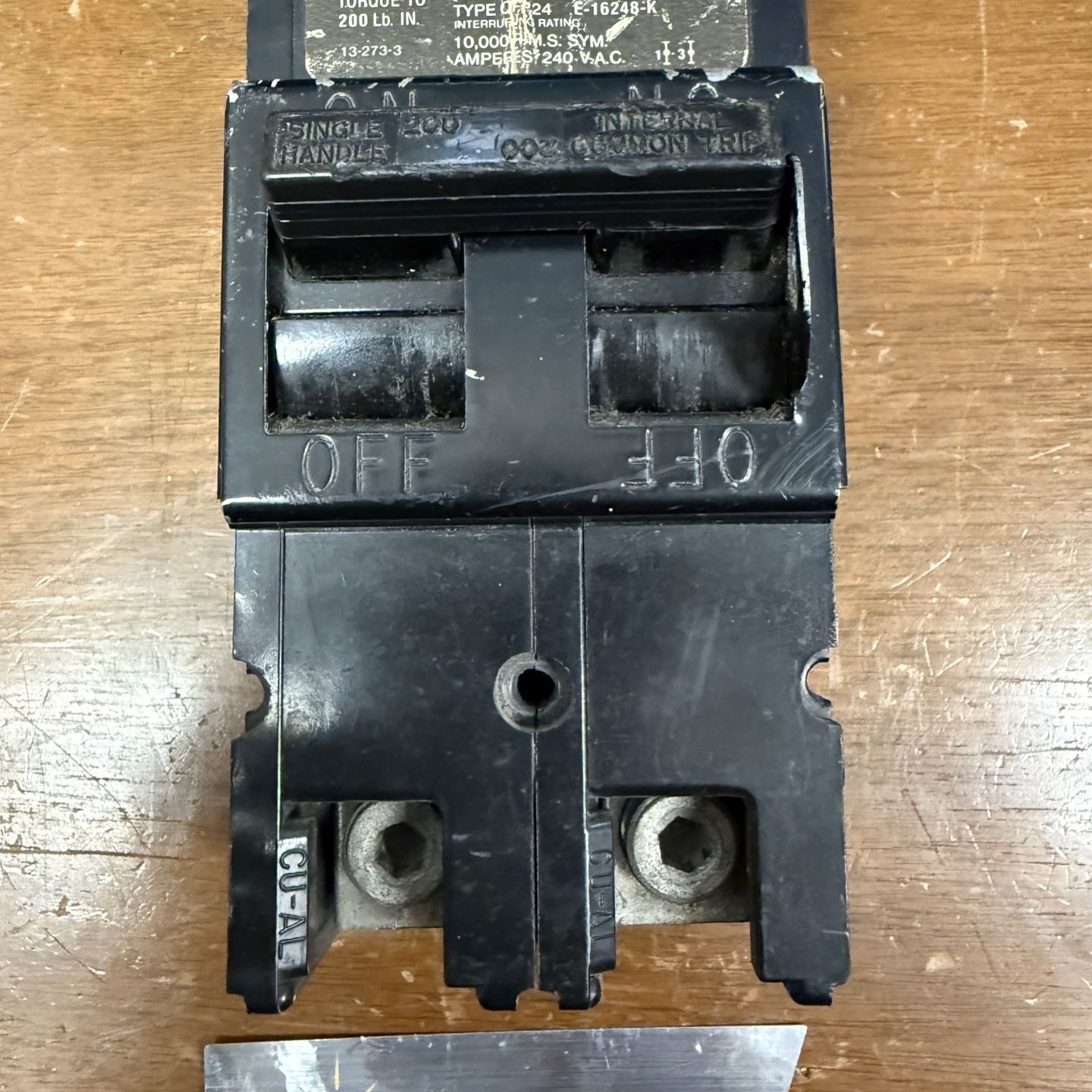

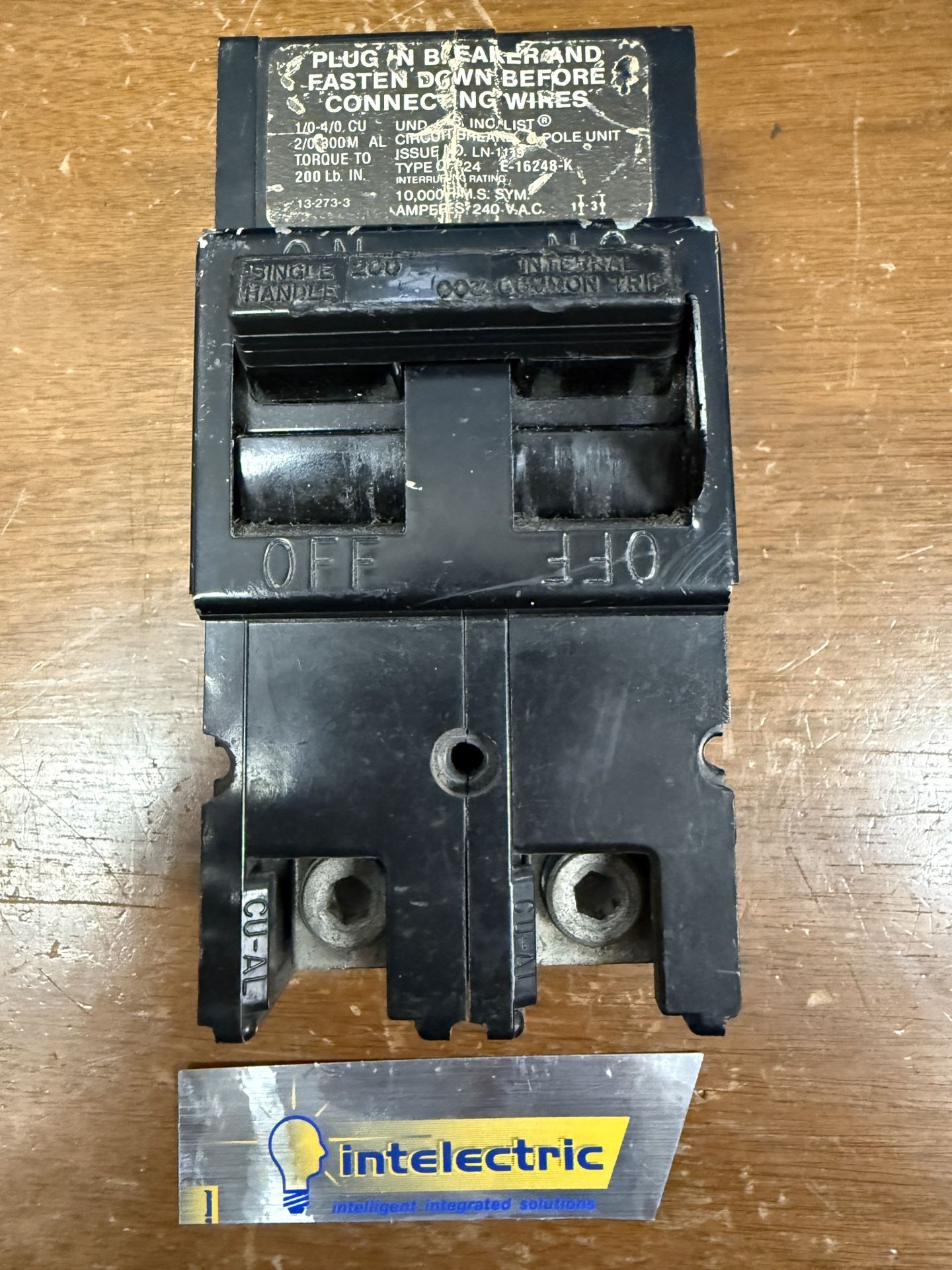

Challenger QFP24 200A 2-Pole Circuit Breaker 10kA 240V Bus Mount UL Listed

Specifications: • Brand/Manufacturer: Challenger • Model/Part Number: Type QFP24 (E-16248-K) • Amperage Rating: 200A • Voltage Rating: 240V AC • Number of Poles: 2 • Interrupting Capacity: 10,000A (10kA) @ 240V • Certifications: UL Listed (Issue No. LN-3115) • Terminal/Lug Type: Plug-In • Wire Compatibility: 1/0-4/0 AWG CU, 2/0-300M AL • Torque Specification: 200 https://offerup.com/redirect/?o=TEIuSU4=. • Special Features: Single Handle, Internal Common Trip • Mounting Requirements: Must be installed on parallel bus or 1” wide tabs only • Additional Reference: I3-273-3 • Condition: Used (vintage) Description: This Challenger Type QFP24 200A 2-pole circuit breaker delivers robust protection with a 10kA interrupting capacity at 240V. UL Listed with a single handle design and internal common trip functionality for simultaneous disconnection of both poles. This heavy-duty breaker accommodates copper conductors from 1/0-4/0 AWG and aluminum conductors from 2/0-300M, with a recommended terminal torque of 200 in-lbs for secure connections. Perfect for main service applications in residential or light commercial settings, this Challenger breaker requires installation on parallel bus or 1” wide tabs only as noted on the warning label. Ideal for replacing aging components in vintage Challenger panels or compatible systems that utilize the same mounting configuration. The single handle mechanism ensures straightforward operation, while the plug-in design facilitates installation in appropriate panels. A reliable solution for electrical service upgrades or restoration projects requiring authentic Challenger components. Keywords: Challenger circuit breaker, QFP24 breaker, 200A breaker, 2-pole breaker, 10kA breaker, main breaker, parallel bus mount, vintage Challenger, 240V breaker, high-amperage breaker​​​​​​​​​​​​​​​​
