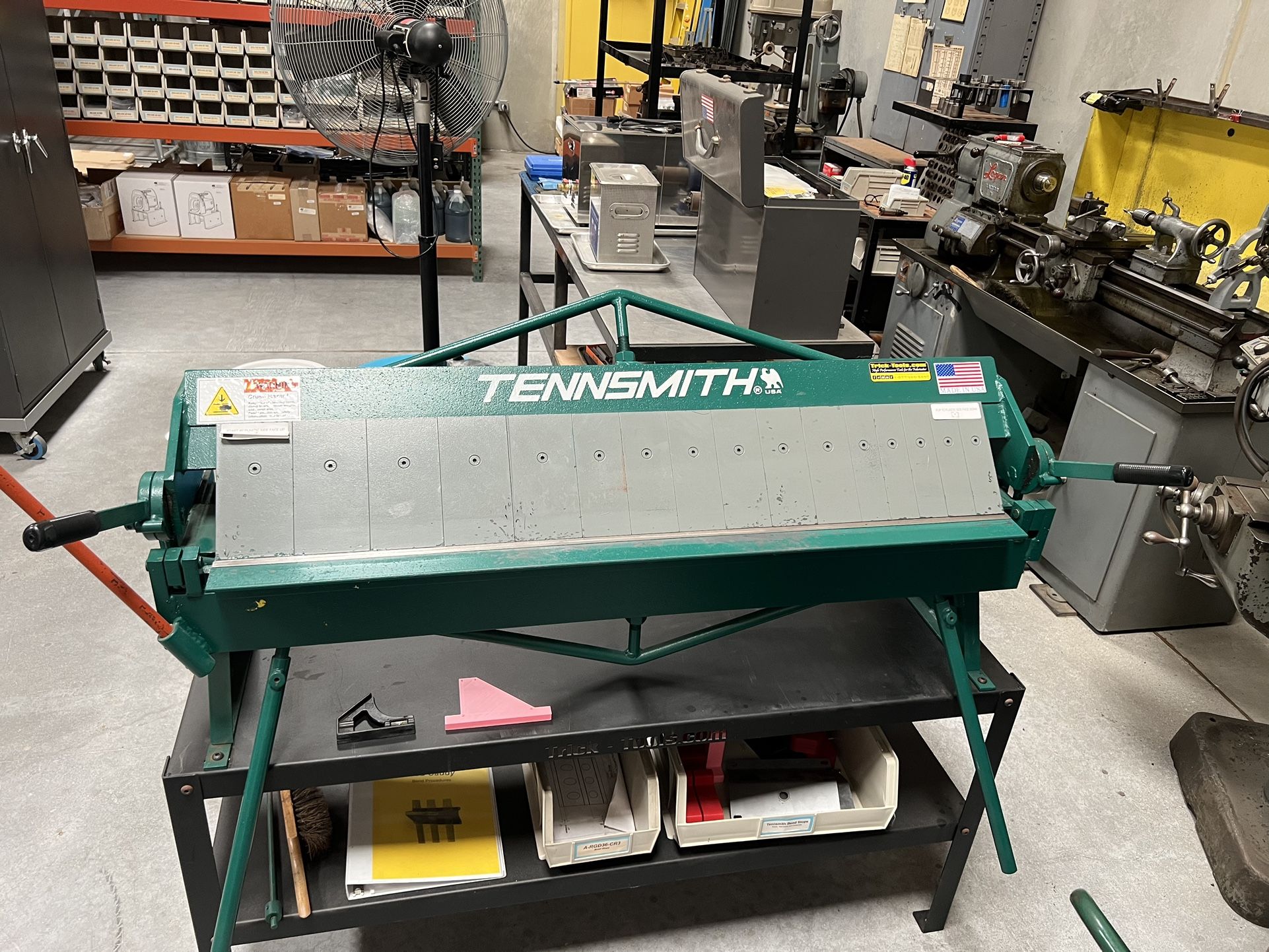

Tennsmith 4 Foot Box & Pan Brake, with Table!

Type

Box Pan Brake

Brand

Tennsmith

Up for sale is our lightly used, primo quality Tennsmith Box Pan Brake with Heavy-duty made in USA table! 👍🏻 Tennsmith's bench mounted hand brakes are rugged, dependable USA-made tools that won't break your budget. Model HBU48-16 is a heavy-duty bench brake suitable for box and pan or straight bending up to 16 gauge mild steel. The brake features a removable apron angle and apron insert permitting 1/4 inch reverse bends in lighter materials. The upper leaf and nose bar has a wide range of adjustments for radius bending. Standard equipment includes an apron stop rod for repeat bends, extension handles, and a counterweight. Tennsmith's bench mounted hand brakes provide an economical means of performing a wide range of sheet metal bending and forming operations. These brakes are of all steel welded construction, readily adjustable, and utilize bronze bearings at the pivot points. •Type: manual •Mild Steel Capacity: 16 gauge (1.5mm) •Stainless Capacity: 20 gauge (.9mm) •Working Length (inches): 48 •Max Depth Of Box (inches): 4 •Max Lift Of Beam (inches): 1.25 •Front To Rear Adj (inches): .625 •Min Reverse Bend (inches): .25 •Minimum Flange Capacity (inches): 1 •Number/Width Of Fingers: 2, 3, 4 inch •Max Forming Length (inches): 48-1/4 •Weight (pounds): 495 •Dimensions (LxWxH): 60 x 19 x 24 Warranty: 3 year manufacturer's warranty
