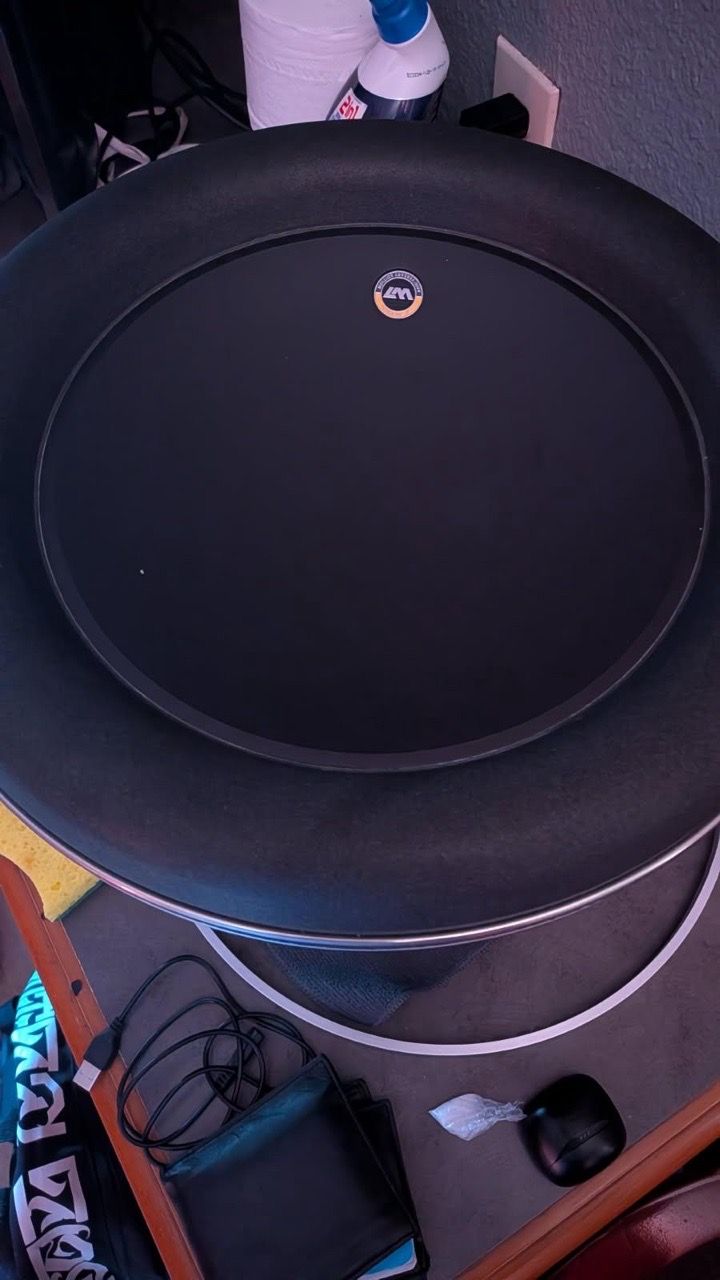

JL Audio W7 anniversary edition 13.5

The JL Audio 13W7AE-D1.5 (Anniversary Edition) is the flagship 13.5-inch subwoofer from JL Audio, originally introduced to mark the 10th anniversary of the W7 series. Widely regarded as a benchmark in high-end car audio, it combines massive SPL output with reference-level sound quality (SQL). The JL Audio 13W7AE-D1.5 delivers reference-grade low frequencies and immense power handling. Key Specifications * Continuous Power Handling (RMS): 500 – 1,500 Watts (3,000 Watts Peak) * Voice Coil Configuration: Dual 1.5-Ohm voice coils (wires to a 3-Ohm or 0.75-Ohm nominal load) * One-Way Linear Excursion (X_{max}): 1.25 inches (32 mm) * Frequency Response: 15 Hz – 200 Hz * Piston Area: 28% larger cone area than a standard 12-inch woofer * Enclosure Requirements: 1.875 cu. ft. sealed or 2.375 cu. ft. ported Key Technological Features * W-Cone™ Technology: Uses a dish-shaped outer cone supported by an inner W-shaped cone to deliver extreme structural rigidity with minimal mass. * OverRoll™ Surround: Wraps around the outside of the mounting flange to maximize active cone surface area. * Floating Cone Attach Method (FCAM™): Ensures precise alignment of the voice coil and cone for exceptional linearity during heavy excursion. * Elevated Frame Cooling: Directs airflow directly across the voice coil structure to maintain thermal performance under sustained high power. Factory-Enclosed Option The JL Audio CLS113RG-W7AE ProWedge features the 13W7AE driver pre-mounted in a precision-engineered, sealed enclosure. What to Consider Before Buying * Amplifier Pairing: Requires a clean monoblock amplifier capable of supplying 1,200W to 1,500W RMS into a 3-Ohm load. * Electrical System: At 1,500W RMS, upgrading your vehicle's alternator, ground wiring, or battery may be necessary. * Physical Space & Weight: Weighing 52 lbs on its own, it requires substantial enclosure depth (10.5 inches) and a wide mounting cutout. If you would like advice on finding compatible monoblock amplifiers or specific enclosure dimensions for your vehicle, let me know!

Condition

Used (normal wear)
