Rotary Vane vacuum Pump

Type

Vacuum/Compressor pump

Brand

GAST

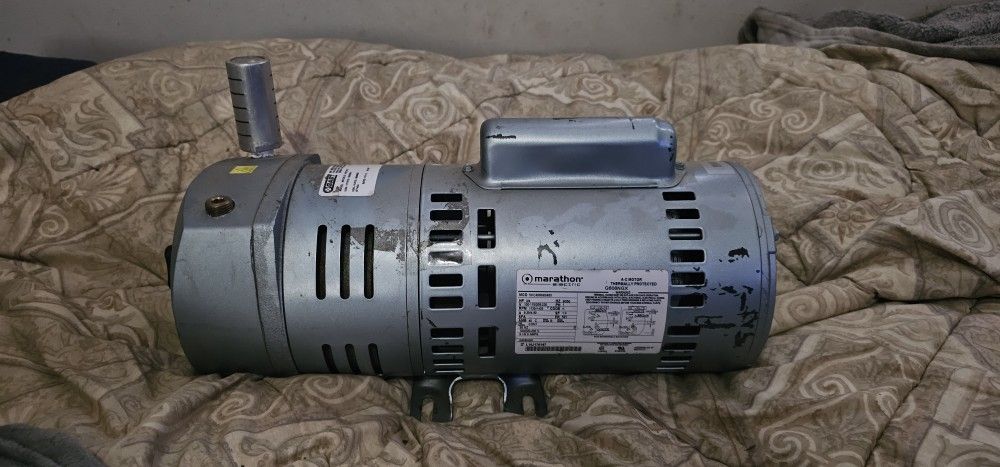

Model is gast 1023 v131q sg608x Lightly used for a project by a family member. It's been sitting in storage and has lost a couple chips of paint in that time. Still works great, this model is designed for vacuum use. Specifications Item Compressor/Vacuum Pump Compressor Type Rotary Vane Design Oil-Less Free Air Cfm @ 0 In. Hg 10.00 Free Air Cfm @ 0 Psi 10.00 Free Air Cfm @ 10 In. Hg 6.30 Free Air Cfm @ 20 In. Hg 0.80 Full Load Amps 12.2/6.1 Housing Cast Iron Hp 3/4 Hz 50/60 Inlet Size 3/8" NPT Max. Vacuum 26" Hg Outlet Size 3/8" NPT Overall Height 8.34" Overall Length 15.94" Overall Width 6.5" Phase 1 Rpm 1725 Voltage 115/230 Product Details Gast 1023-V131Q-SG608X vacuum pump is manufactured for continuous-duty & low-pressure pumping applications. It removes air or gaseous particles from a container to create a vacuum and is beneficial in the food & beverage, electronics, pulp and paper, medical, plastics and woodworking industries. Working Mechanism These pumps use a flexible membrane or diaphragm to pull air into an air chamber. The diaphragm creates a barrier between the pump mechanism and air to prevent corrosive fumes from entering the pump components. Features Gast vacuum pump features permanently lubricated and sealed bearings for smooth operations and cast iron construction for enhanced life. This eccentrically placed motor is capable of producing power up to 3/4 HP. It has a multi-voltage dual-frequency motor that can operate at 115/230V AC at 50 Hz. This pump has self-adjusting and self-lubricating vanes to reduce manual efforts. It is equipped with a muffler to reduce noise from the exhaust port.
