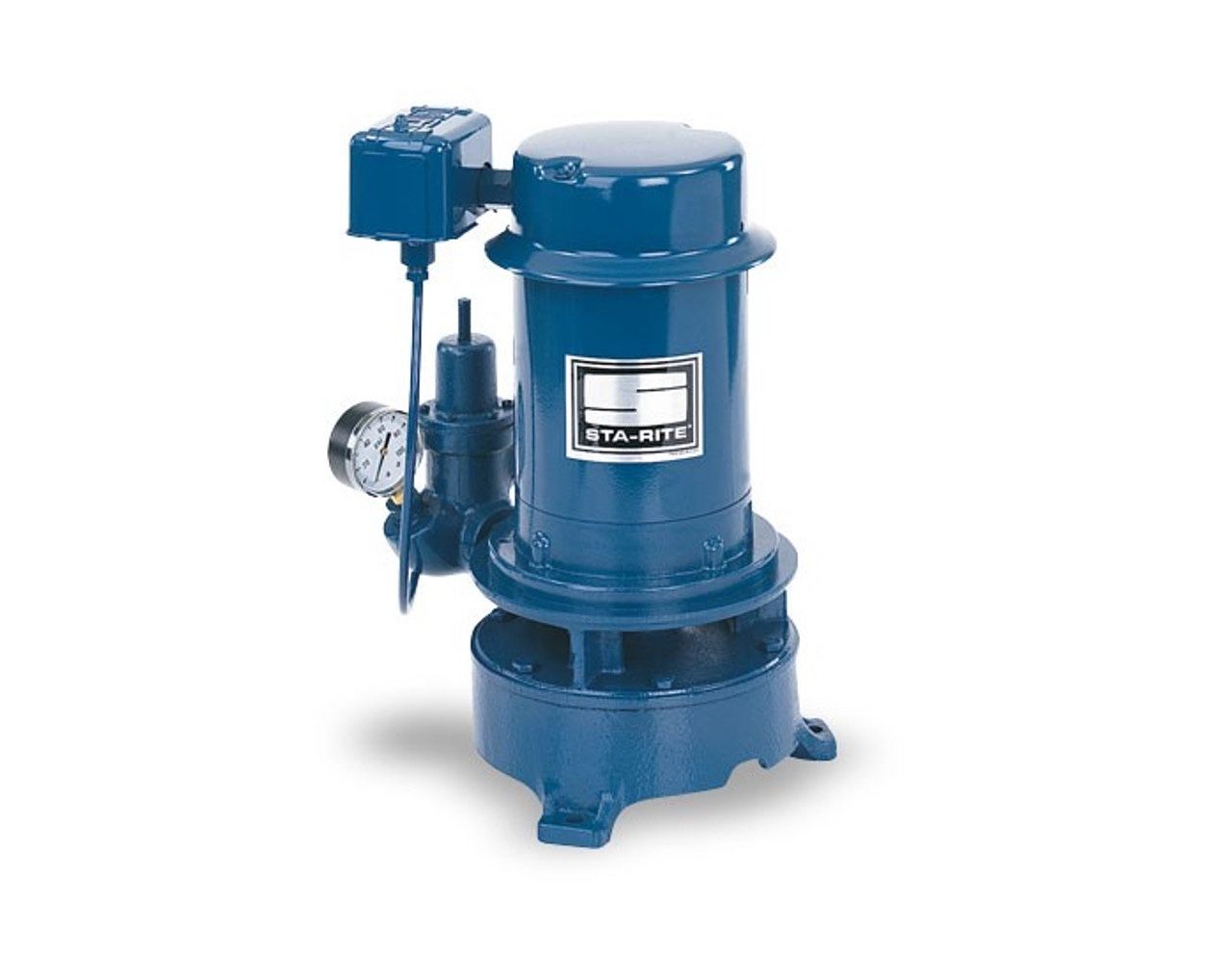

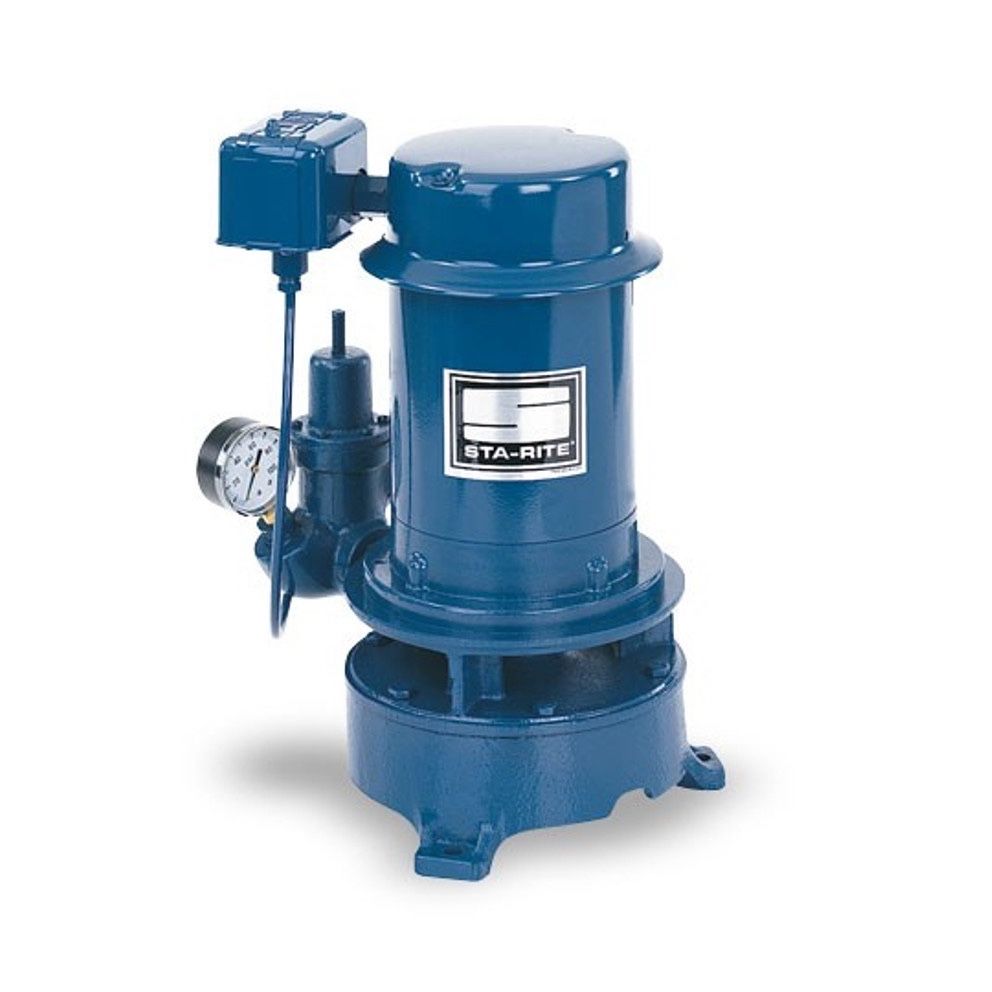

PENTAIR STA-RITE SSJE, VERTICAL DEEP WELL JET PUMP, SSJ SERIES, 1 HP, 15/230 VOLTS, 1 PHASE

ITEM IS NEW IN THE BOX!!! I HAVE 20 OF THEM AVAILABLE!!! Sta-Rite's SSJ Series Vertical Single-Stage Deep Well Jet Pumps are the industry standard deepwell jet pumps for over-the-well “bolt-on” installations. Features * Quality Construction - Precision- machined, close-grained cast iron pump body and base are specially treated to resist corrosion. * Ideal for water systems and sprinkling for homes, farms and cottages. * Automatic Pressure Regulator: Faster- acting, quieter design eliminates “hunting” for correct drive pressure. New, improved stem and guide are precisely molded to assure efficient, trouble-free performance on all deep wells. * Noryl impellers: Precision-molded for perfect balance, and ultra-smooth for highest performance and efficiency. * Pressure Switch: High quality. Differential and cut-in/cut-out pressure settings are adjustable. * Dustproof cover: All electrical components are protected from dirt, dust and insects by a dustproof canopy. Ventilating air cannot contaminate vital switching components. This eliminates the most common cause of motor failure. * Motor Windings: Superior insulation materials protect against exces sive mois ture and contaminants to ensure prolonged motor life. * Balanced Rotor: Diecast under high pressures for uniform performance and greater efficiency; dynamically balanced. * Heavy-Duty Ball Bearings: Shielded, permanently lubricated bearings are extensively tested to ensure extended life and smooth, quiet operation. * Pump and Motor Shaft: Stainless steel for maximum corrosion resistance; one-piece threaded shaft for positive impeller drive and alignmen Applications • Water systems and sprinkling for homes, farms and cottages Mfg. Number SSJE Series SSJ Series Product Type Vertical Deep Well Jet Pump Application Water Systems Horsepower 1 HP Voltage 115/230 volts Phase 1 Frequency 60 Hz   BODY CONSTRUCTION:  Cast Iron
 MAXIMUM CAPACITY:  9.5 GPM (with 4" double-pipe setup)
FLOW at 50' LIFT and 40 PSI:  6.3 GPM (with 4" double-pipe setup)
MAX LIFT:  80'
MAX SHUT-OFF PRESSURE:  102 PSI (SSJE at shallow depth-to-water)
PRESSURE SWITCH SETTING:  40 - 60 PSI
SUCTION SIZE:  1-1/4" NPT
DISCHARGE SIZE:  1" NPT
DRIVE SIZE:  1" NPT
VOLTAGE:  115v / 230v, 60 Hz, 1-phase
MAXIMUM LIQUID TEMPERATURE:  140 F (60 C)

Condition

New
