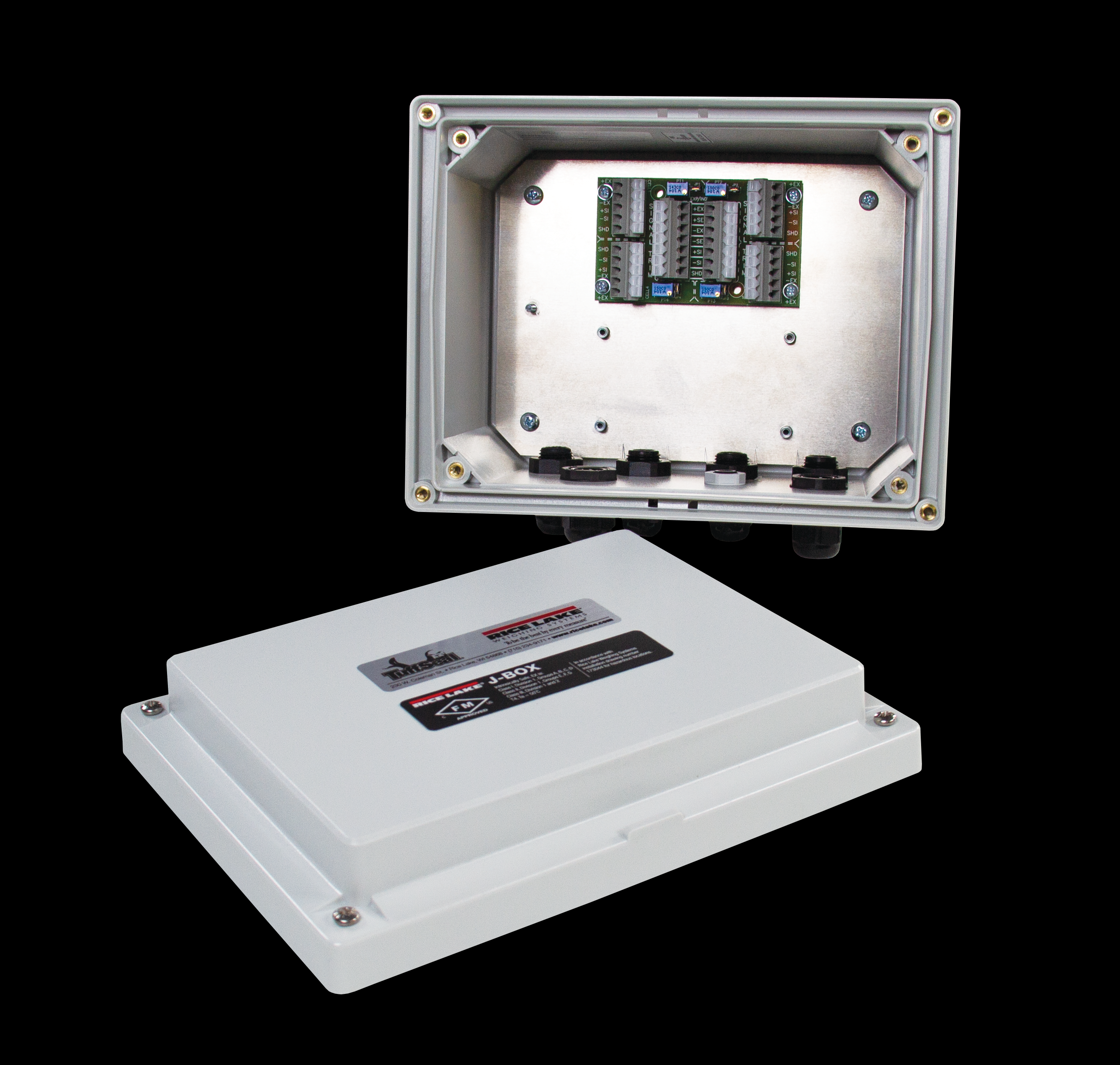

Rice Lake JB4SP JB4SPT TuffSeal Signal Trim Junction Box w/ Expansion Port
Posted in Ontario, CA
Listed in categories:
Business Information
Ontario, CA 91761, USA
Chat securely on the app
Description
The Rice Lake JB4SP and JB4SPT TuffSeal® Signal Trim Junction Boxes are rugged industrial summing boxes designed to combine and balance signals from multiple load cells in demanding weighing applications. Built for use as sub-junction boxes within larger modular weighing systems, these units provide reliable signal management and expansion capabilities for complex scale installations.
Designed to accommodate two, three, or four single load cells, the JB4SP and JB4SPT feature individual signal trimming that allows technicians to precisely balance load cell outputs for improved weighing accuracy and platform performance. Integrated jumpers make it easy to enable or disable individual load cells during troubleshooting, maintenance, or system configuration.
The included expansion port allows additional junction boxes to be connected, making the system scalable for larger tank, hopper, and process weighing applications. This flexibility makes the JB4SP series an excellent choice for installations requiring more than four load cells while maintaining centralized signal management.
Constructed with a durable Fiberglass Reinforced Polyester (FRP) / Polycarbonate NEMA Type 4X enclosure and stainless steel hardware, the JB4SP series provides outstanding protection against moisture, dust, corrosion, and harsh industrial conditions. The conformal-coated circuit board and PreVent™ breather vent further protect internal electronics by reducing condensation and pressure changes caused by environmental fluctuations.
The JB4SPT model includes additional transient protection for applications exposed to electrical surges or lightning-related disturbances, helping safeguard sensitive weighing equipment and load cell circuitry.
Whether used in tank weighing systems, hopper scales, vessel scales, or industrial process weighing applications, the JB4SP and JB4SPT provide dependable load cell summing, trimming, and expansion capabilities for accurate and reliable weighing performance.
Key Features
•
Connects two, three, or four single load cells•
Individual signal trimming for accurate scale balancing•
Expansion port for larger multi-load-cell systems•
Jumpers enable or disable individual load cells•
PreVent™ breather vent minimizes condensation and pressure buildup•
Conformal-coated circuit board for enhanced environmental protection•
NEMA Type 4X enclosure designed for harsh industrial environments•
Spring-clamp screwless terminals for quick installation•
Available with transient protection (JB4SPT model)•
Ideal for tank scales, hopper scales, and modular weighing systems
Specifications
| Feature | Specification |
|---|---|
| Brand | Rice Lake |
| Model | JB4SP / JB4SPT |
| Type | Signal Trim Junction Box |
| Part Number | 91780 (JB4SP), 92762 (JB4SPT) |
| Enclosure Rating | NEMA Type 4X |
| Enclosure Material | FRP / Polycarbonate with Stainless Steel Hardware |
| Load Cell Capacity | 2, 3, or 4 Single Load Cells |
| Trimming Type | Individual Cell Signal Trim |
| Expansion Port | Yes |
| Circuit Board | Conformal Coated |
| Breather Vent | PreVent™ |
| Connectors | Spring Clamp Screwless |
| Wire Size | 12-28 AWG |
| Potentiometers | 100,000 Ohm, 25-Turn Cermet |
| Operating Temperature | 0°F to 122°F (-18°C to 50°C) |
| Cable Fittings | (4) PG7 and (2) PG11 Strain Reliefs |
| Approvals | cFMus (JB4SP) |
| Warranty | One-Year Limited Warranty |
Applications
•
Tank Scales•
Hopper Scales•
Vessel Weighing Systems•
Process Weighing Equipment•
Multi-Load-Cell Installations•
Industrial Automation Systems•
Agricultural Weighing Applications•
Modular Scale Systems
Details
Condition
Used (normal wear)
