$5,595

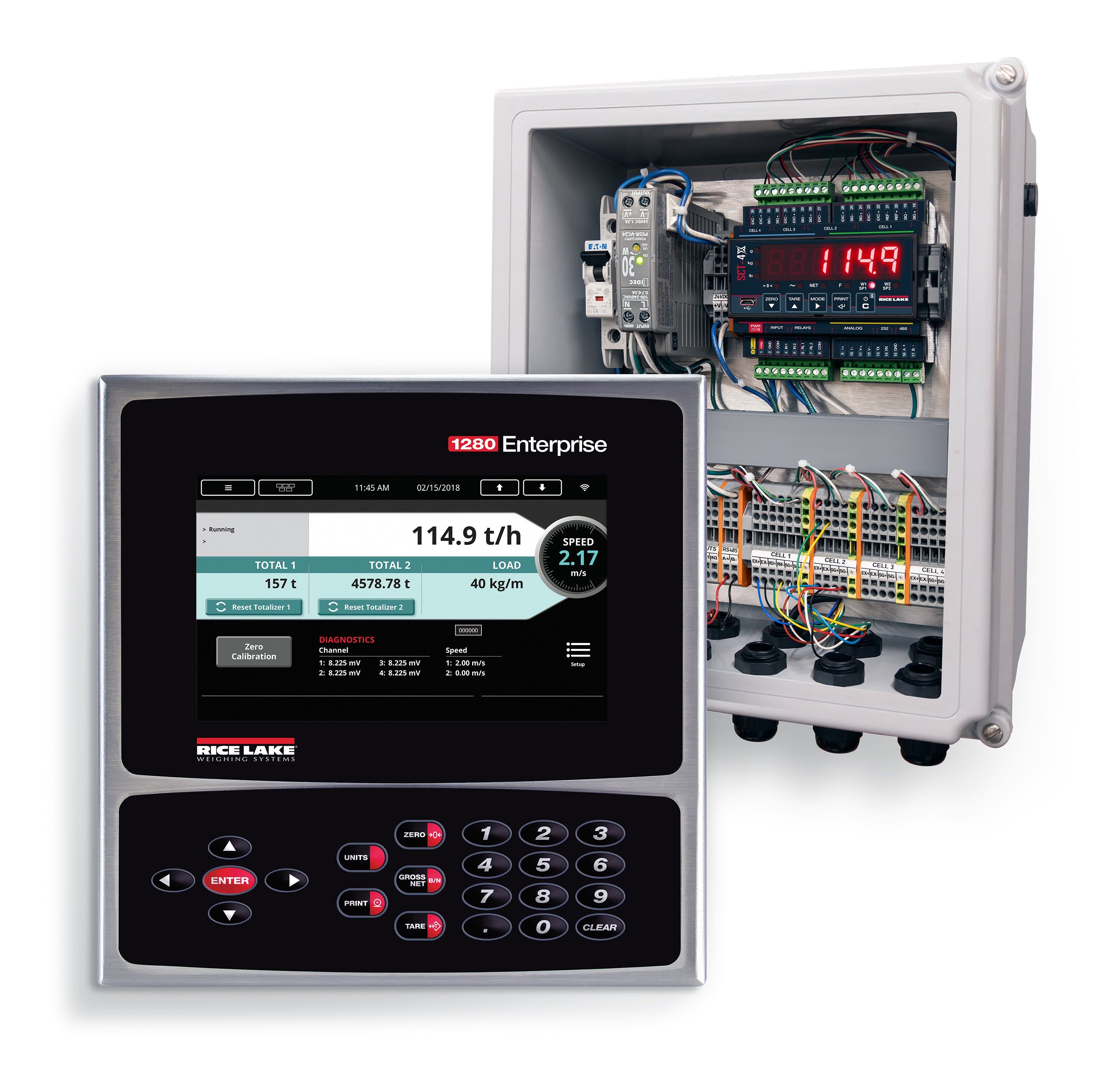

Rice Lake 1280 with SCT-4XD Integrator Belt Scale & Bulk Material Instrumentation
Last updated 3 days ago in Ontario, CA
Listed in categories:
Business Information
Ontario, CA 91761, USA
Chat securely on the app
Additional images
Description
The Rice Lake 1280 with SCT-4XD Integrator is a high-speed belt scale and bulk material instrumentation system designed for continuous weighing, material flow monitoring, diagnostics, and process control. The SCT-4XD integrator can manage up to four load cells on one scale, read two speed encoders, and manage two totalizers.
Paired with the 1280 terminal, the system provides an intuitive resistive touchscreen interface, real-time diagnostics, process data, and a built-in web server for remote network access. Two operating modes—belt weighing and solid flow metering—provide flexibility for a range of bulk material handling applications.
The SCT-4XD also provides Micro-USB connectivity for configuration, diagnostics, and data backup using Rice Lake Tools software. Integrated fieldbus communication options include EtherNet/IP, PROFINET IO, and Modbus TCP/IP, while analog output is available as an option.
Key Features
•
1280 terminal with built-in web server•
Intuitive resistive touchscreen interface•
SCT-4XD high-speed belt scale integrator•
Manages up to 4 load cells on one scale•
Reads up to 2 speed encoders•
Supports 2 totalizers•
Belt weighing and solid flow metering modes•
Real-time diagnostics and process data•
Remote access through built-in web server•
Micro-USB port for configuration and data backup•
Compatible with Rice Lake Tools software•
Removable terminal blocks for simplified wiring•
Industrial power supply protection•
Integrated fieldbus communication available•
Optional analog output•
Designed for belt scale and bulk material weighing applications
Communication Options
•
EtherNet/IP™•
PROFINET IO•
Modbus TCP/IP•
Analog output option•
Micro-USB configuration and diagnostic connection•
Built-in web server for network-based access
SCT-4XD Specifications
| Specification | Details |
|---|---|
| Product Type | Belt Scale / Bulk Material Instrumentation |
| Integrator | SCT-4XD |
| Terminal | Rice Lake 1280 |
| Load Cells | Up to 4 |
| Speed Encoders | Up to 2 |
| Totalizers | 2 |
| Operating Modes | Belt / Solid Flow Metering |
| Communication | EtherNet/IP, PROFINET IO, Modbus TCP/IP |
| USB | Micro-USB |
| Web Server | Built-in |
| Display | 1280 resistive touchscreen |
| Applications | Belt scales and bulk material weighing |
Available Configurations
Part #228768
1280 Belt Indicator with SCT-4XDAN digitizer, including 1280 Universal with 1280 Belt Program and digitizer enclosure.
Part #229090
1280 Belt HMI enclosure with US wall-mount AC power supply, power cord, SCT-4XDAN on DIN rail and 24 VDC power supply.
Part #228928
1280 Belt HMI enclosure with European wall-mount AC power supply, power cord, SCT-4XDAN on DIN rail and 24 VDC power supply.
Applications
Ideal for:
•
Conveyor belt weighing•
Bulk material handling•
Aggregate processing•
Mining•
Material flow monitoring•
Process control•
Continuous material weighing•
Solid flow metering•
Industrial automation•
Conveyor weighing systems
Details
Condition
Used (normal wear)
